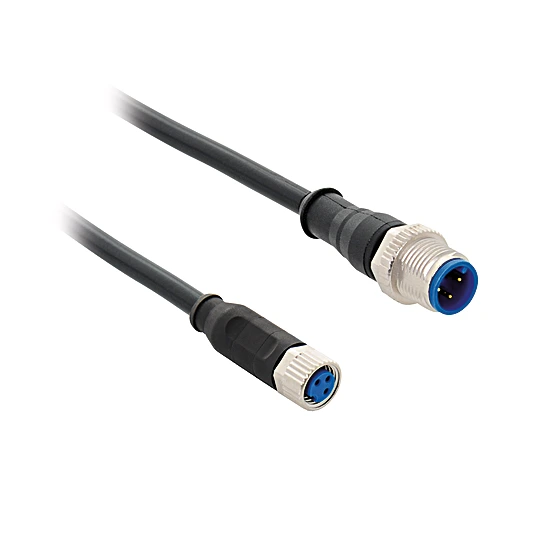

ZCGV001 Connection Cable M8×1, 3-pin – M12×1, 4-pin
Connection Cable
In Stock
$34.71
per unit
Applications: Sensors & I/O
Description
Features at a Glance
- Socket M8 × 1, straight
- Plug M12 × 1, straight
Technical Data
Electrical Data
| Supply Voltage | ≤ 50 V AC/DC |
Mechanical Data
| Connection 1 | Socket, straight |
| Connection mode 1 | M8 × 1, 3-pin |
| Connection 2 | Plug, straight |
| Connection mode 2 | M12 × 1, 4-pin |
| Torque | M8: 0,4 Nm; M12: 0,6 Nm |
| Coding | A-coding |
| Cable length (L) | 2 m |
| Outer diameter (d) | 4.5 mm |
| Wire cross-section | 0.25 mm² |
| Degree of Protection | IP67 |
| Temperature range (fixed installation) | -30 … 80 °C |
| Temperature range (moving application) | -5 … 80 °C |
| Cable Jacket Material | Plastic, PVC |
| Material Wire Insulation | Plastic, PVC |
| Material Sleeve Nut | Brass, nickel-plated |
| Weight | 72 g |
General Data
| Scope of delivery | 1 × line |
| Packaging unit | 1 Piece |
Pin assignment
  |
Connection Diagram
 |
