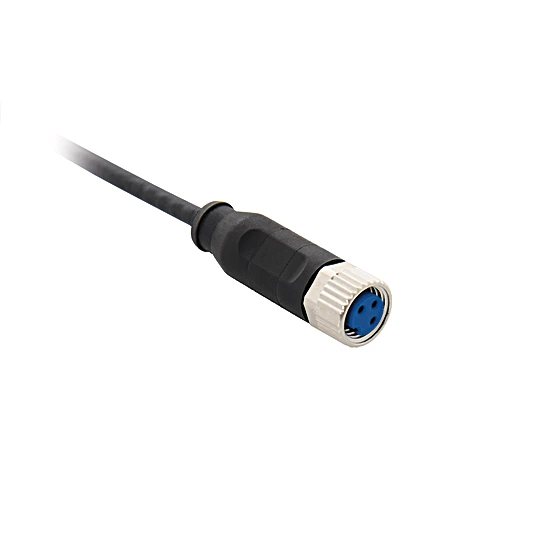

ZCGL001 Connection Line M8 × 1; 3-pin
Connection Line
In Stock
$166.15
per unit
Applications: Sensors & I/O
Description
Features at a Glance
- PUR, straight
Technical Data
Electrical Data
| Supply Voltage | ≤ 60 V DC |
Mechanical Data
| Connection 1 | Socket, straight |
| Connection mode 1 | M8 × 1, 3-pin |
| Connection 2 | stripped |
| Torque | M8: 0,4 Nm |
| Cable length (L) | 24.8 m |
| Outer diameter (d) | 2.9 mm |
| Wire cross-section | 0.5 mm² |
| Degree of Protection | IP65 IP67 |
| Temperature range (fixed installation) | -40 … 80 °C |
| Temperature range (moving application) | -25 … 80 °C |
| Cable Jacket Material | Plastic, PUR |
| Material Wire Insulation | Plastic, PP |
| Material Sleeve Nut | Zinc diecasting, nickel-plated |
| Screened | yes |
| Weight | 380 g |
General Data
| Scope of delivery | 1 × line |
| Packaging unit | 1 Piece |
Pin assignment
 |
Connection Diagram
 |
