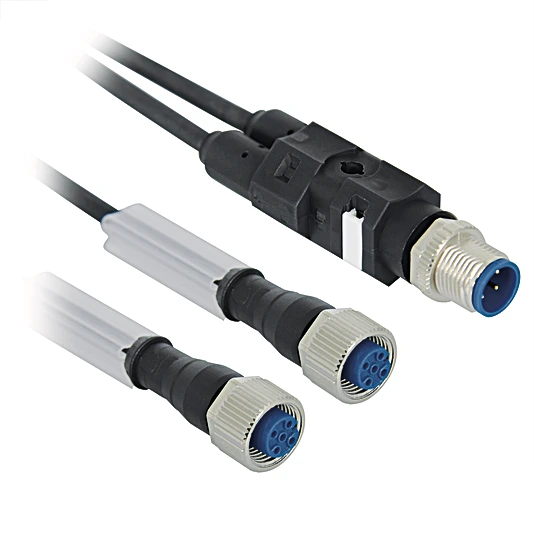

ZCBV001 Connection Cable M12 × 1; Y distributor
Connection Cable
In Stock
$62.65
per unit
Applications: Sensors & I/O
Description
Features at a Glance
- PUR, straight
Technical Data
Electrical Data
| Supply Voltage | ≤ 250 V AC/DC |
Mechanical Data
| Connection 1 | Plug, straight |
| Connection mode 1 | M12 × 1, 4-pin |
| Connection 2 | Socket, straight |
| Connection mode 2 | M12 × 1, 4-pin |
| Torque | M12: 0,6 Nm |
| Coding | A-coding |
| Cable length (L) | 300 mm |
| Outer diameter (d) | 4.3 mm |
| Wire cross-section | 0.34 mm² |
| Degree of Protection | IP65 IP67 |
| Temperature range (fixed installation) | -40 … 80 °C |
| Temperature range (moving application) | -25 … 80 °C |
| Cable Jacket Material | Plastic, PUR |
| Material Wire Insulation | Plastic, PP |
| Weight | 62 g |
General Data
| Scope of delivery | 1 × connection cable |
| Packaging unit | 1 Piece |
Pin assignment
  |

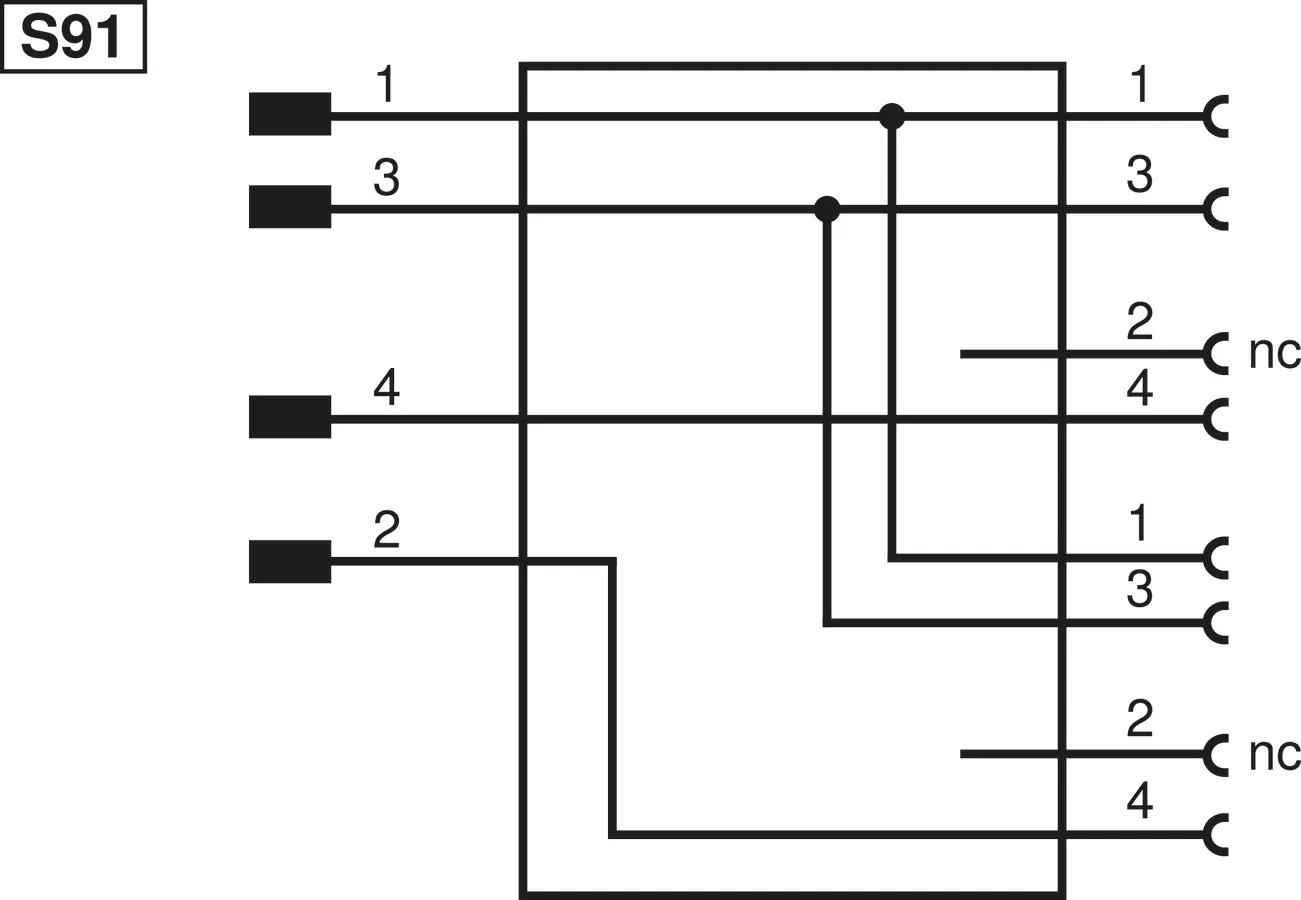

Connection Diagram
 |
