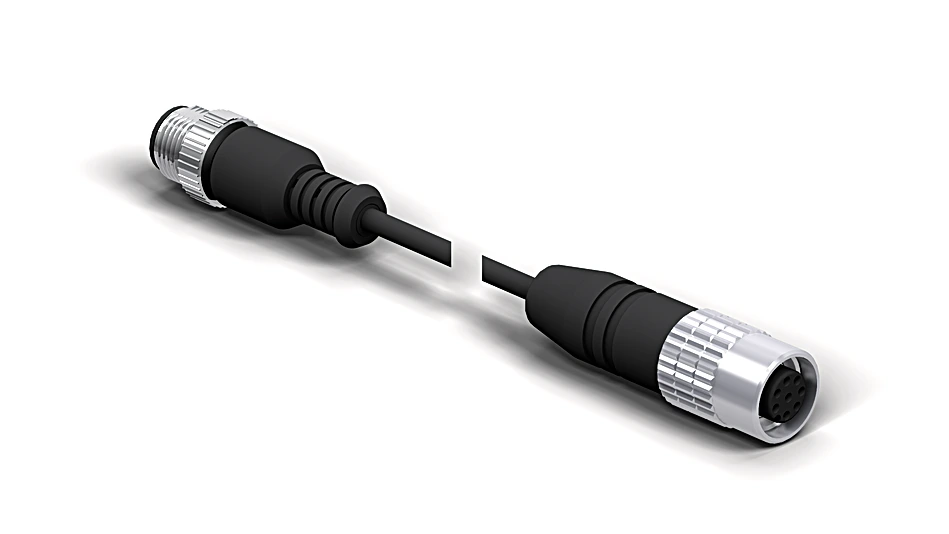

ZC7V003 Connection Cable M12 x 1; 8-pin – M12 x 1; 5-pin
Connection Cable
In Stock
$96.90
per unit
Applications: Sensors & I/O
Description
The cable adapts the 8-pin plug of SEMG series receiver devices to 4- or 5-pin connection lines. SEMG devices can thus also be used in existing applications that are already equipped with 4- or 5-pin connection lines. Applications that do not require the restart inhibit and contactor monitoring functions can be implemented with reduced wiring effort.
Features at a Glance
- Socket M12 × 1, straight
- Plug M12 × 1, straight
- Automatic operation preset by means of internal jumper
- Suitable for receivers with integrated plug or cable end
- Simplified wiring and initial start-up
Technical Data
Electrical Data
| Supply Voltage | ≤ 300 V AC/DC |
Mechanical Data
| Connection 1 | Socket, straight |
| Connection mode 1 | M12 × 1, 8-pin |
| Connection 2 | Plug, straight |
| Connection mode 2 | M12 × 1, 5-pin |
| Coding | A-coding |
| Cable length (L) | 200 mm |
| Outer diameter (d) | 5 mm |
| Wire cross-section | 0.25 mm² |
| Degree of Protection | IP67 |
| Temperature Range | -25 … 80 °C |
| Cable Jacket Material | Plastic, TPU |
| Material Wire Insulation | Plastic, PVC |
| Material Sleeve Nut | Brass, nickel-plated |
| Weight | 32 g |
General Data
| Scope of delivery | 1 × connection cable |
| Packaging unit | 1 Piece |
Pin assignment
  |
Connection Diagram
 |
