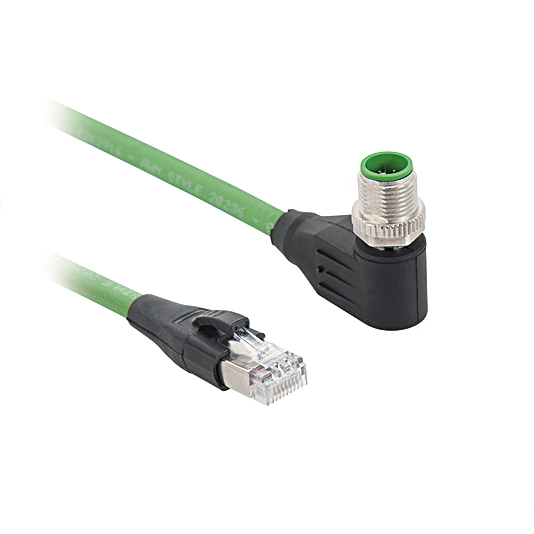

ZC1V009 Connection Cable M12 × 1; 8-pin, X-coding – RJ45; 8-pin
Connection Cable
In Stock
$163.85
per unit
Applications: Sensors & I/O
Description
Features at a Glance
- Screened
- PUR, angled
Technical Data
Electrical Data
| Supply Voltage | ≤ 60 V DC |
Mechanical Data
| Connection 1 | Plug, angled |
| Connection mode 1 | M12 × 1, 8-pin, X-cod. |
| Connection 2 | Plug, straight |
| Connection mode 2 | RJ45, 8-pin |
| Torque | M12: 0,6 Nm |
| Coding | X-coding |
| Cable length (L) | 2 m |
| Outer diameter (d) | 6.4 mm |
| Wire cross-section | 0.14 mm² |
| Degree of Protection | IP67 |
| Temperature range (fixed installation) | -30 … 80 °C |
| Temperature range (moving application) | -10 … 50 °C |
| Cable Jacket Material | Plastic, PUR |
| Material Wire Insulation | Plastic, PE |
| Material Sleeve Nut | Zinc diecasting, nickel-plated |
| Category | CAT 6A |
| Screened | yes |
| Halogen-free | yes |
| Drag Chain Suitable | no |
| Weight | 123 g |
General Data
| Scope of delivery | 1 × line |
| Packaging unit | 1 Piece |
Pin assignment
  |
Connection Diagram
 |
