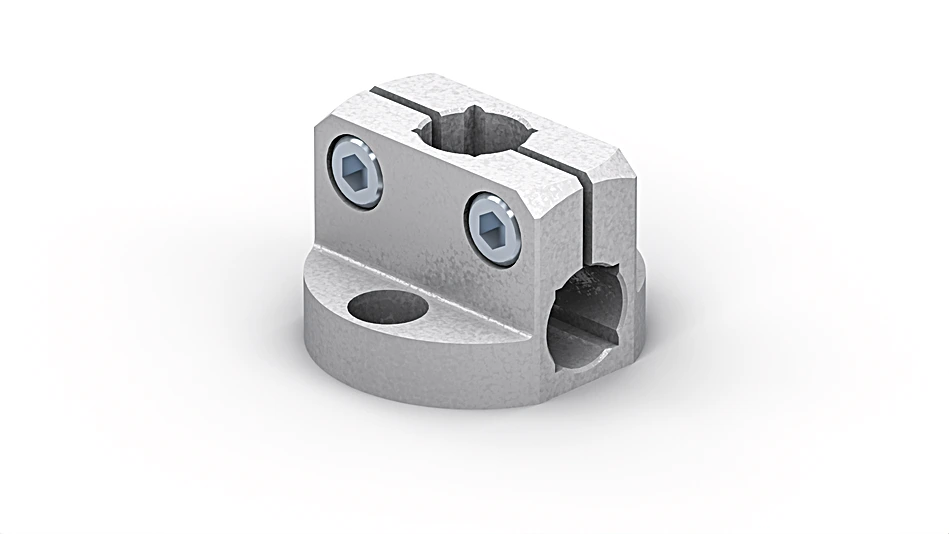

ZBSY001 Retaining Clamp for Ø 12 mm mounting bar/10 × 10 mm mounting profile
Retaining Clamp
In Stock
$66.30
per unit
Description
The retaining clamps function as rod profile holders and can be mounted on aluminum profiles, for example. Mounting profiles and rods can be inserted and clamped from above and at the sides.
Features at a Glance
- Screw-type technology
- Easy installation on aluminum system profiles
- Optional mounting on plates
Technical Data
Mechanical Data
| Diameter | 38 mm |
| Thread | M5 |
| Mounting type, device-side | Terminals, screws |
| Mounting type, system-side | Screwable with slot nut |
| Material | Aluminum, anodised |

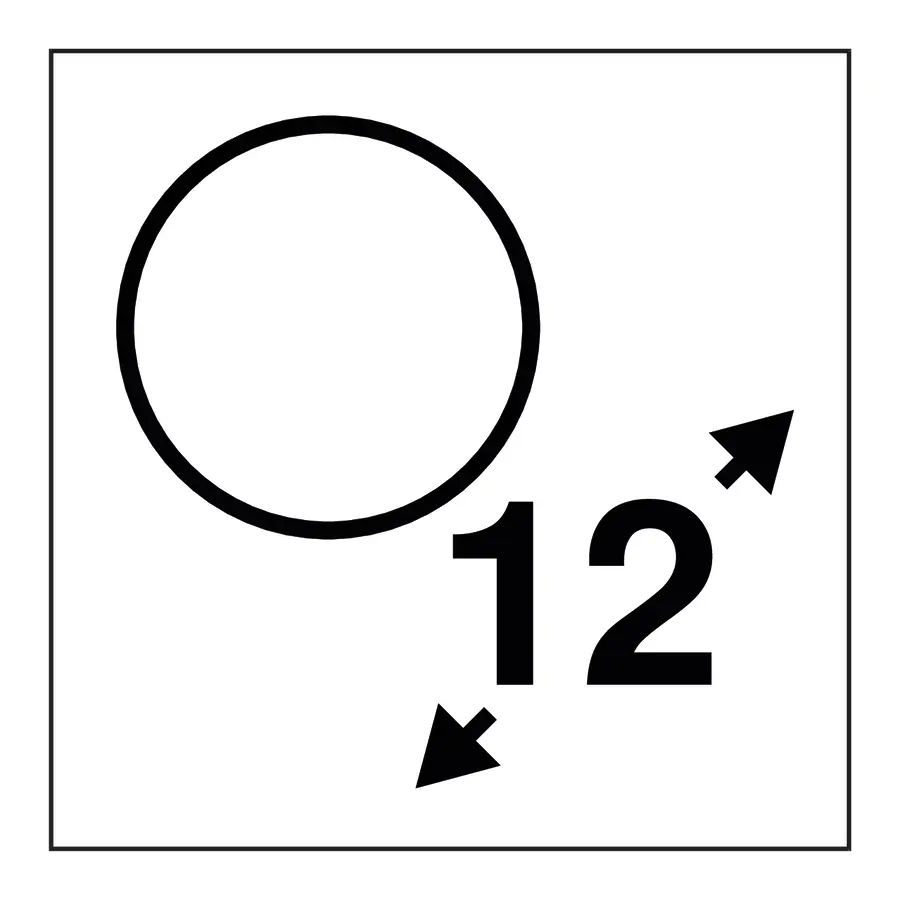

| for Round Profile Diameter | 12 mm |

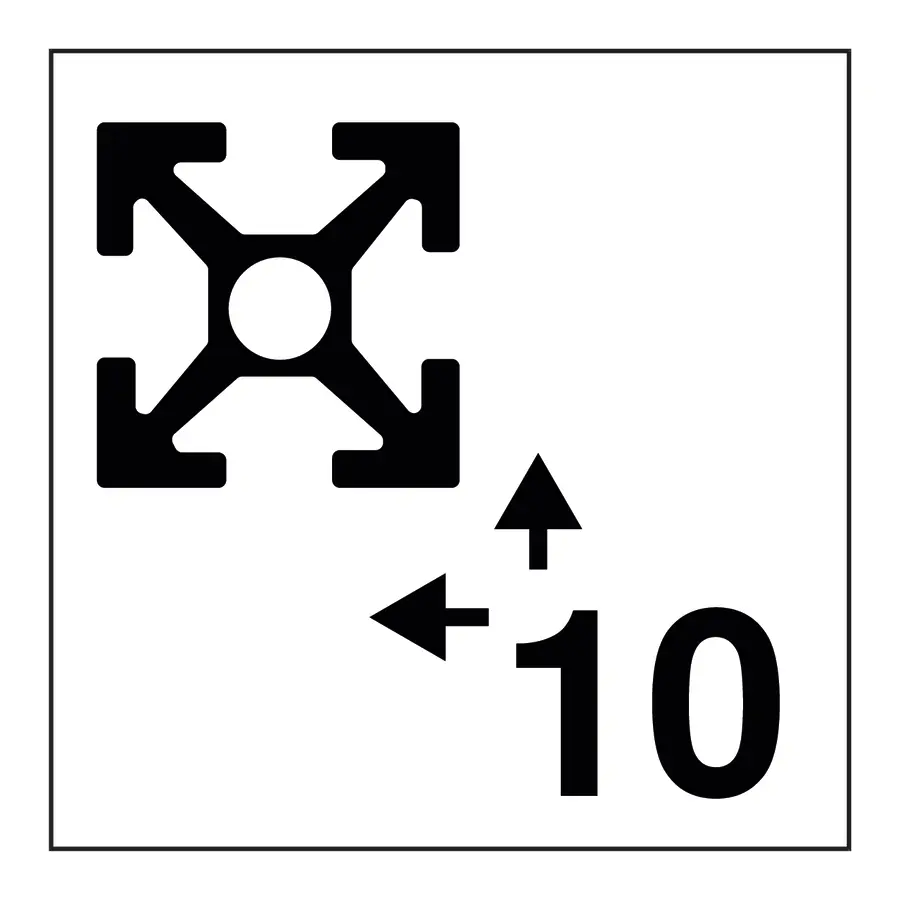

| For edge length | 10 × 10 mm |
| Weight | 33 g |
General Data
| Scope of delivery | 1 × retaining clamp |
| Packaging unit | 1 Piece |
| Use | for mounting bar For mounting profile As a base holder |
