Description

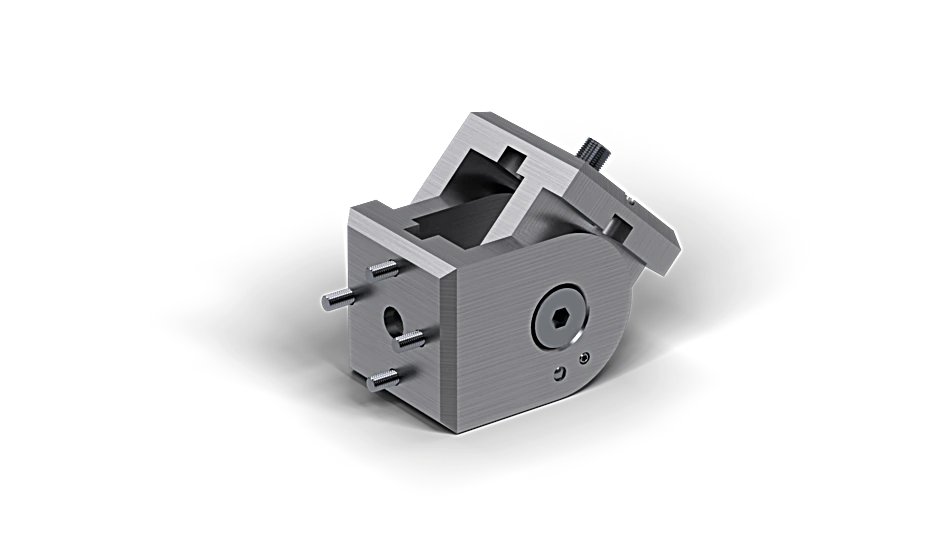

This bar clamp enables the correct attachment of illumination technology to aluminum profiles. The system allows for 180° rotation in the vertical plane. It is advisable to use multiple bar clamps depending on the size of the product to be secured.
Features at a Glance
- Mounting on aluminum profiles
- Simple installation
- Flexible alignment options
Technical Data
Mechanical Data
| Mounting type, device-side | Screwable with slot nut |
| Mounting type, system-side | Aluminum profile |
| Material | Aluminum, anodised |
| Weight | 256 g |
General Data
| Scope of delivery | 1 × bar clamp, 1 × screw (M8×16), 2 × screw (M4×16), 1 × setscrew (M4×6), 1 x locking pin (4×14) |
| Packaging unit | 1 Piece |
Standards and certificates
 |
