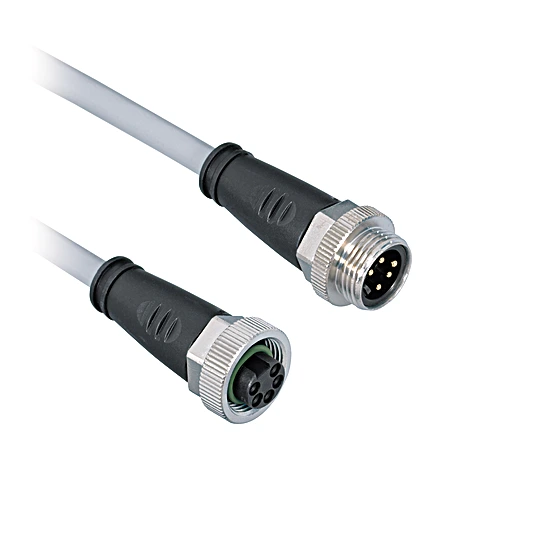

ZAV78R201 Connection Cable 7/8″; 5-pin
Connection Cable
In Stock
$118.15
per unit
Applications: Sensors & I/O
Description
Features at a Glance
- Halogen free, drag chain suitability
- PUR, straight
Technical Data
Electrical Data
| Supply Voltage | ≤ 230 V DC/AC |
Mechanical Data
| Connection 1 | Socket, straight |
| Connection mode 1 | 7/8″, 5-pin |
| Connection 2 | Plug, straight |
| Connection mode 2 | 7/8″, 5-pin |
| Torque | 1,5 Nm |
| Cable length (L) | 2 m |
| Outer diameter (d) | 8.7 mm |
| Wire cross-section | 1.5 mm² |
| Degree of Protection | IP67 |
| Temperature range (fixed installation) | -50 … 80 °C |
| Temperature range (moving application) | -20 … 80 °C |
| Cable Jacket Material | Plastic, PUR |
| Material Wire Insulation | Plastic, PP |
| Material Sleeve Nut | Brass |
| Halogen-free | yes |
| Drag Chain Suitable | yes |
| Bending radius (fixed installation) | > 7,5 × d |
| Bending radius (used in motion) | > 10 × d |
| Travel speed (with 5 m horizontal travel distance) | ≤ 3,3 m/s |
| Acceleration | ≤ 5 m/s² |
| Bending cycles | ≤ 5000000 |
| Weight | 340 g |
General Data
| Scope of delivery | 1 × connection cable |
| Packaging unit | 1 Piece |
Pin assignment
  |
Connection Diagram
 |
