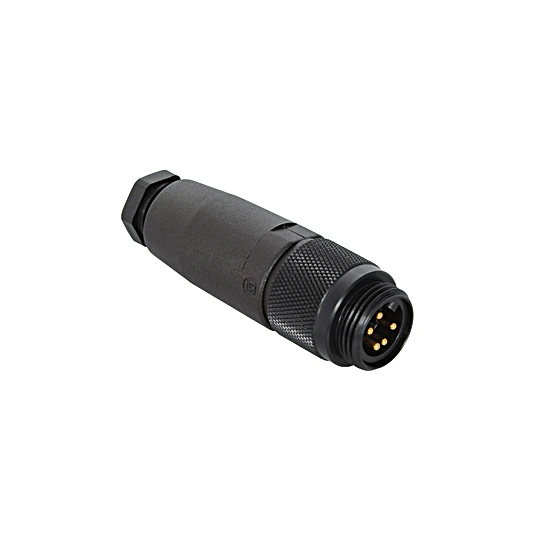

ZAT77NN01 Connector Plug 7/8″; 5-pin
Connector Plug
In Stock
$52.50
per unit
Applications: Sensors & I/O
Description
Features at a Glance
- Plug 7/8″, straight
Technical Data
Mechanical Data
| Connection 1 | Plug, straight |
| Connection mode 1 | 7/8″, 5-pin |
| Torque | 0,4 Nm |
| Outer diameter (d) | 8 … 10 mm |
| Wire cross-section | ≤ 1.5 mm² |
| Assembling | Screw Terminal Technology |
| Degree of Protection | IP67 |
| Temperature Range | -40 … 90 °C |
| Material Sleeve Nut | Aluminum, anodised |
| Weight | 66 g |
General Data
| Scope of delivery | 1 × connector plug |
| Packaging unit | 1 Piece |
Pin assignment
 |
Connection Diagram
 |
