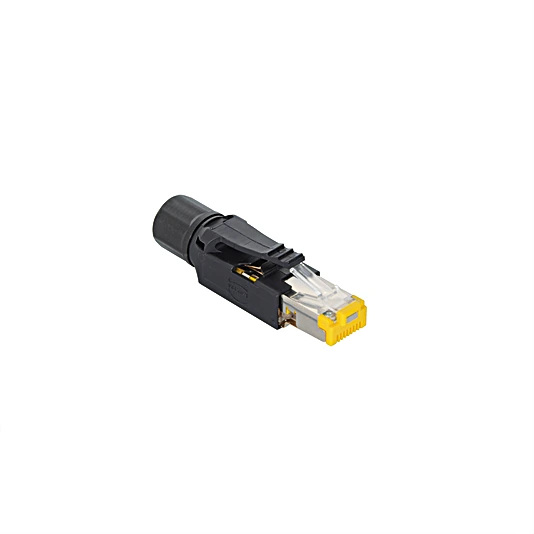

ZAT45NN01 Connector Plug RJ45; 8-pin
Connector Plug
In Stock
$52.50
per unit
Applications: Sensors & I/O
Description
Features at a Glance
- AWG 27-22
- Insulation displacement technology (IDC)
- Plug RJ45, 8-pin
Technical Data
Mechanical Data
| Connection 1 | Plug, straight |
| Connection mode 1 | RJ45, 8-pin |
| Outer diameter (d) | 4.5 … 9 mm |
| Wire cross-section | 0.1 … 0.5 mm² |
| Assembling | Insulation displacement connector (IDC) |
| Degree of Protection | IP20 |
| Temperature Range | -40 … 70 °C |
| Category | Cat 6 EA |
| Screened | yes |
| Weight | 17 g |
General Data
| Scope of delivery | 1 × connector plug |
| Packaging unit | 1 Piece |
Pin assignment
 |
Connection Diagram
 |
