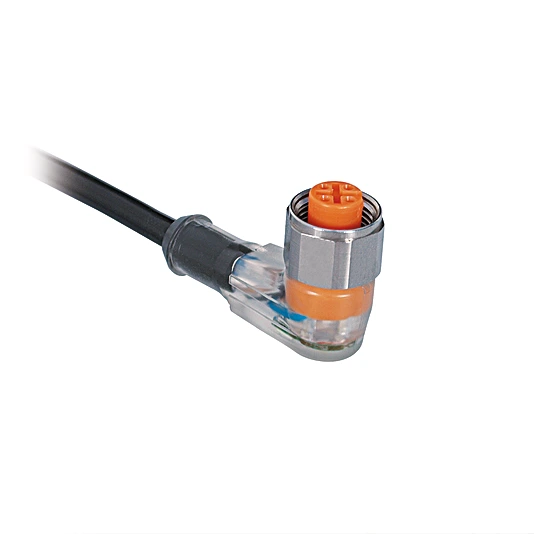

ZAS02V802 Connection Line M12 × 1; 4-pin
Connection Line
In Stock
$81.21
per unit
Applications: Sensors & I/O
Description
This product has been discontinued, but is still available as a spare part. Successor
Features at a Glance
- Protection mode IP69K
- With LED, angled
Technical Data
Electrical Data
| Supply Voltage | ≤ 125 V AC/DC |
Mechanical Data
| Connection 1 | Socket, angled |
| Connection mode 1 | M12 × 1, 4-pin |
| Connection 2 | stripped |
| Torque | M12: 0,7 Nm |
| Coding | A-coding |
| Cable length (L) | 25 m |
| Outer diameter (d) | 5 mm |
| Wire cross-section | 0.25 mm² |
| Display | LED |
| Degree of Protection | IP68 IP69K |
| Temperature range (fixed installation) | -25 … 80 °C |
| Temperature range (moving application) | -25 … 80 °C |
| Cable Jacket Material | PVC |
| Material Wire Insulation | PVC |
| Material Sleeve Nut | Stainless steel, V4A |
| Weight | 866 g |
General Data
| Scope of delivery | 1 × line |
| Packaging unit | 1 Piece |
Pin assignment
 |
Connection Diagram
 |
