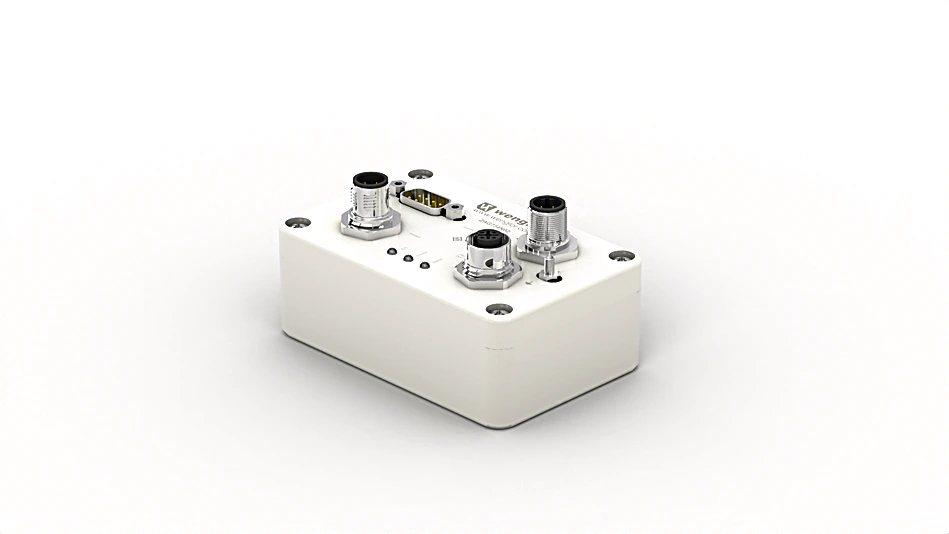

ZAG73AN02 Fieldbus Gateway RS-232 to PROFIBUS DP
Fieldbus Gateway
In Stock
$906.92
per unit
Applications: Sensors & I/O
Description
These fieldbus gateways allow an easy connection of sensors and scanners to PROFIBUS DP.
Features at a Glance
- Gateway from RS-232 interfaces on PROFIBUS DP
- Voltage supply of external units (5 V DC) via the gateway
- Protection mode IP65
Technical Data
Electrical Data
| Supply Voltage | 15 … 30 V DC |
| Voltage Supply of external products | 5 V |
| Current Consumption Sensor (Ub = 5 V) | < 1 A |
| Temperature Range | -10 … 50 °C |
| Short Circuit Protection | yes |
| Reverse Polarity Protection | yes |
| Interface | RS-232 |
| Baud Rate PROFIBUS | < 12 MBd |
| Baud Rate RS-232 | < 115,200 Bd |
| Number of users | 126 |
| Protection Class | III |
Mechanical Data
| Housing Material | Plastic, ABS |
| Degree of Protection | IP65 |
| Connection Mode Supply Voltage | M12 × 1; 4-pin |
| Connection Mode Scanner | SubD 9 S |
| Connection Bus Side | M12 × 1; 4-pin |
| Weight | 311 g |
General Data
| Scope of delivery | 1 × fieldbus gateway |
Standards and certificates
    |

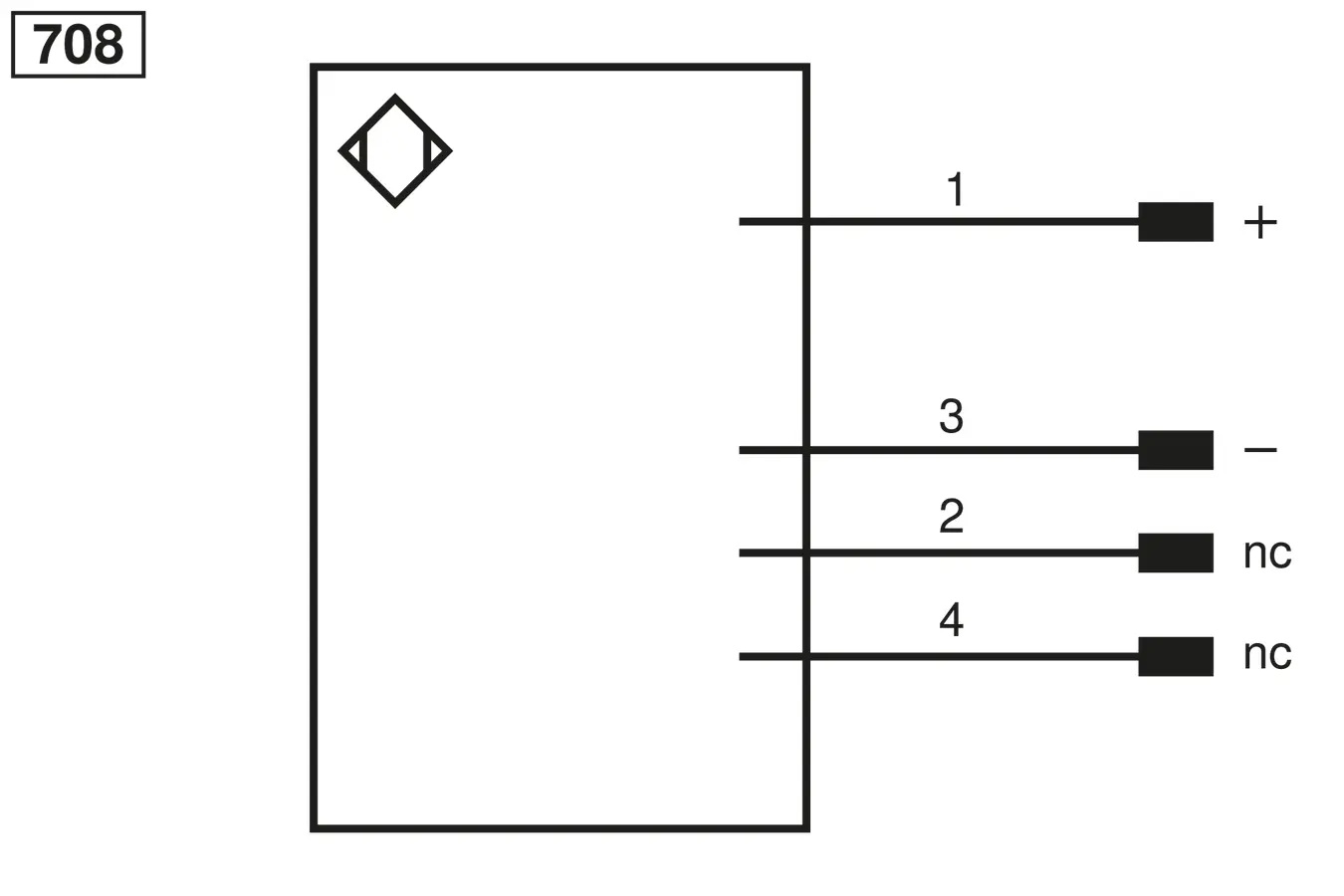

Connection Diagram
 |
