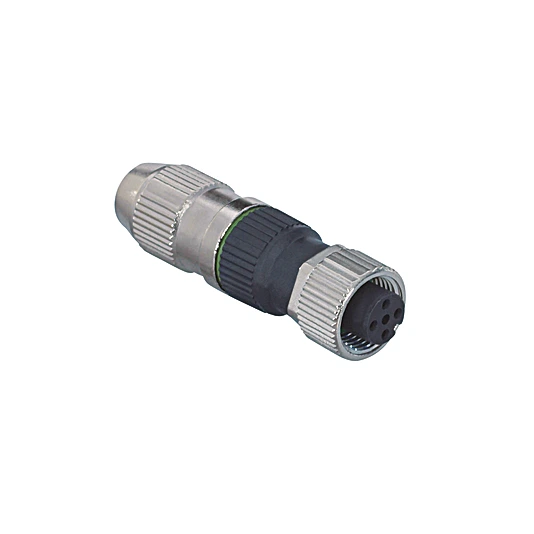

ZAB02NN01 Connection Socket M12 × 1; 4-pin
Connection Socket
In Stock
$30.28
per unit
Applications: Sensors & I/O
Description
Features at a Glance
- Insulation displacement technology (IDC)
- Socket M12 × 1, straight
Technical Data
Mechanical Data
| Connection 1 | Socket, straight |
| Connection mode 1 | M12 × 1, 4-pin |
| Torque | M12: 0,6 Nm |
| Coding | A-coding |
| Outer diameter (d) | 4 … 5.1 mm |
| Wire cross-section | 0.25 … 0.5 mm² |
| Assembling | Insulation displacement connector (IDC) |
| Degree of Protection | IP67 |
| Temperature Range | -25 … 85 °C |
| Material Sleeve Nut | Zinc, nickel-plated |
| Weight | 25 g |
General Data
| Scope of delivery | 1 × connection socket |
| Packaging unit | 1 Piece |
Pin assignment
 |
Connection Diagram
 |
