Description

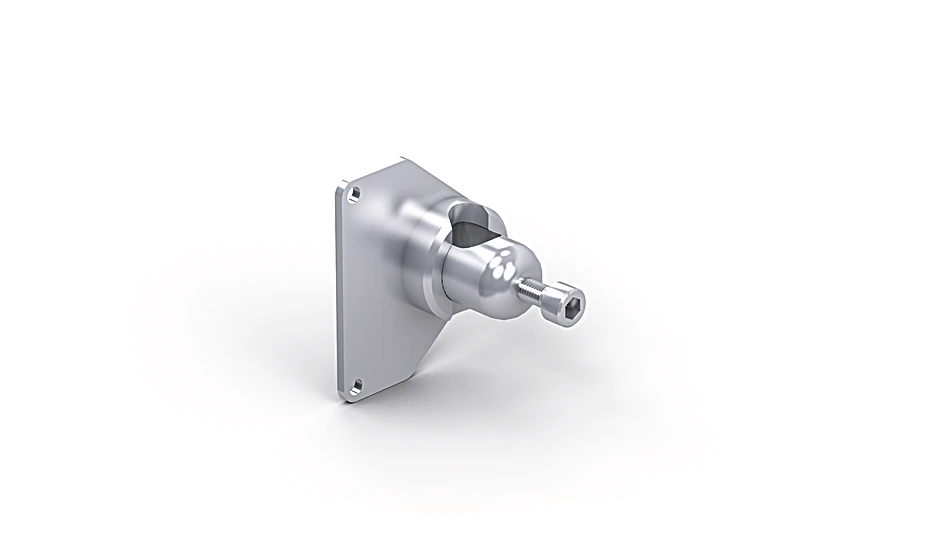

This mounting enables correct mounting on the side of the Smart Camera B60. The system can be rotated 360° on the vertical and horizontal planes.
Features at a Glance
- Stainless steel
- Simple installation
- Flexible alignment options
Technical Data
Mechanical Data
| Mounting type, device-side | Screwable to mounting plate |
| Mounting type, system-side | Mounting bar |
| Material | Stainless Steel V2A |
| for Round Profile Diameter | 8 … 13 mm |
| Weight | 135 g |
General Data
| Packaging unit | 1 Piece |
| Use | for square housing |
Standards and certificates
 |
Alignment possibilities
 |
