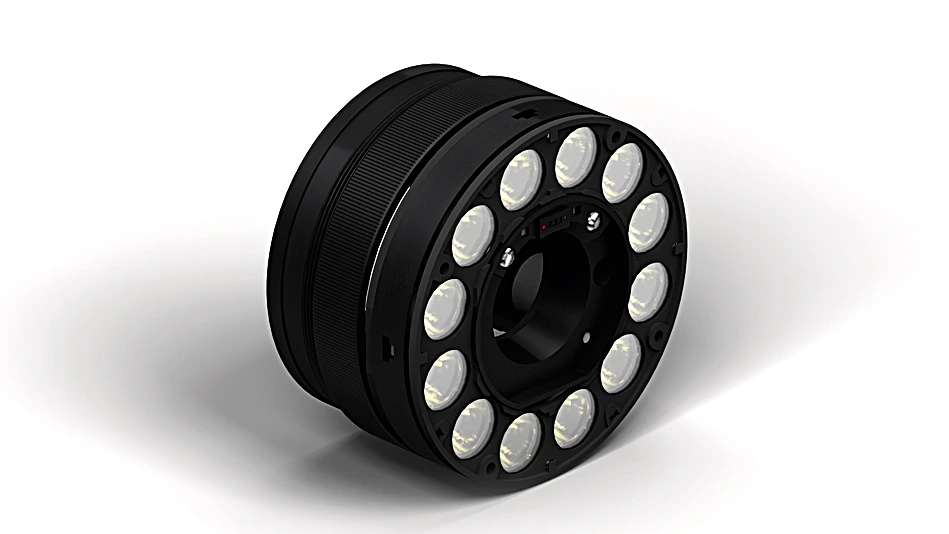

Z60F001 Illumination Module White Light for B60 auto-focus wide
White Illumination Module
In Stock
$989.69
per unit
Description
The lighting modules of the smart camera B60 offer homogeneous illumination via four segments. The tool-free exchangeable modules can be changed on site in a matter of seconds, providing maximum flexibility for adaptations to individual requirements at short notice.
Features at a Glance
- Diffuse illumination
- Quick and easy replacement
- Sectors can be controlled separately
- Multizone Distance Sensor
- Test object status LED (green, red)
Technical Data
Optical Data
| Light Source | White Light |
| Color temperature | 5,800 K |
| Beam angle | 92 ° |
Electrical Data
| Supply Voltage | 24 V DC |
| Current Consumption Continuous Mode (Ub = 24 V) | 0.2 A |
| Current consumption flash mode OverDrive (operating voltage = 24 V) | 1.1 A |
| Flash duration (max.) | 0.05 … 20 ms |
| Duty cycle (max.) | 0,1 |
| Protection Class | III |
| Dimming | Software wenglor uniVision 3 |
| OverDrive | yes |
Mechanical Data
| Housing Material | Aluminium, AlMg1SiCu Plastic, PA6/ABS |
| Optic Cover | Plastic, PMMA |
| Weight | 60 g |
Safety-relevant Data
| MTTFd (EN ISO 13849-1) | 1,236.87 a |
General Data
| Scope of delivery | 1 × lighting module, 1 × angle changer |
Function
| Operating modes | Continuous, Strobe, Strobe Overdrive |
| Multizone Distance Sensor | yes |
