Description

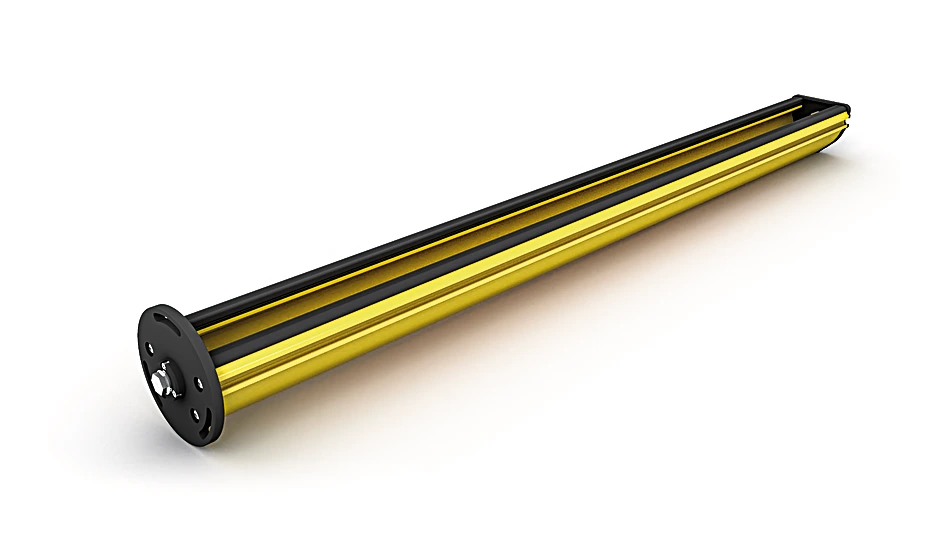

The protection column without protective screen provides safety light curtains and multi-light arrays with reliable protection against bumps, collisions and machines. A freestanding setup is possible using the type ZMBSZ0001 floor mounting. The type ZMBSZ0002 wall mounting is suitable for horizontal setups. Axial or vertical alignment is possible with just a few turns of your hand thanks to the intelligent mounting technology and integrated level. One slot on the protection column simplifies installation and alignment of the various muting sets.
Features at a Glance
- Effective protection against mechanical damage
- Simple alignment via innovative mounting feature
- Flexible installation: install on the ground or walls
- Integrated slot for muting sets
Technical Data
Mechanical Data
| Housing Material | Aluminum, powder-coated Plastic, PA Plastic, PE |
| Disc Material | Polycarbonate |
| Cable Outlet | bottom/top |
| Mounting Space (EBR) | 1,252 mm |
| Weight | 6,650 g |
General Data
| Scope of delivery | 1 × protection column |
