Description
The mounting offers flexible alignment options thanks to an adapter plate. The miniature design is fastened to the adapter plate with oval head screws. The adapter plate can be mounted on the ZBSY004 mounting clamp with M5 screws.
Features at a Glance

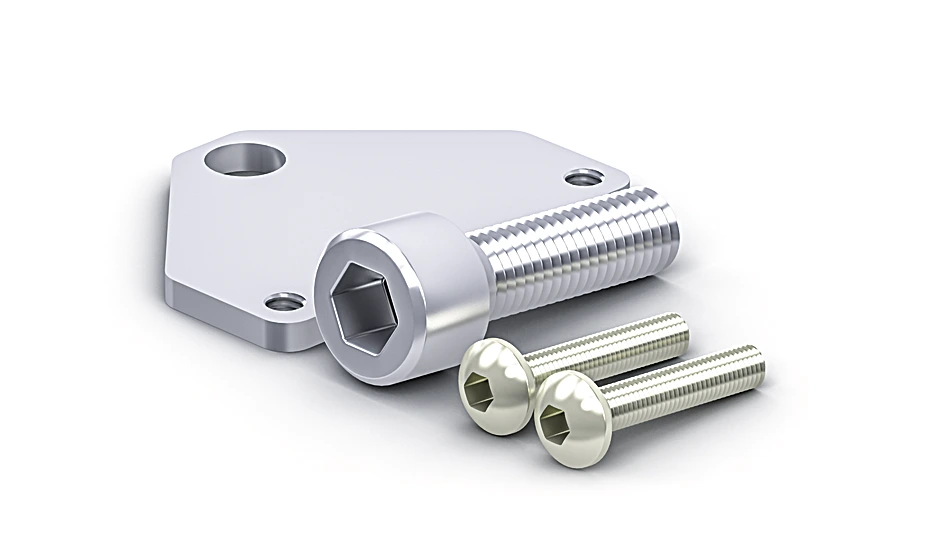

- Included: 1 × adapter plate, 1 × M5 screw, 2 × M3 screws
- Suitable for mounting profiles and round bars in combination with the ZBSY004 mounting clamp
- Flexible alignment options
Technical Data
Mechanical Data
| Diameter | 5.3 mm |
| Thread | M3 |
| Mounting type, device-side | Screwable to mounting plate |
| Mounting type, system-side | Mounting profile |
| Material Mounting Plate | Aluminum, anodised |
| Screw material | Stainless Steel |
| Slot nut material | Stainless Steel |
| Surface treatment | Clear anodized |
| for Round Profile Diameter | 12 mm |
| For edge length | 10 × 10 mm |
| Clamp retainer tightening torque | 3 Nm |
| Sensor tightening torque | 0,3 Nm |
| Weight | 8 g |
General Data
| Scope of delivery | 1 × adapter plate, 1 × M5 screw, 2 × M3×14 screws |
| Packaging unit | 1 Piece |
| Use | For ZBSY004 mounting clamp |
