Z1KC001 Mounting for reflectors with M3 mounting holes
Mounting
In Stock
$26.28
per unit
Description
The mounting is suitable for direct mounting, as the adapter block has an elongated T-slot bar that can be inserted into the T-slot. The bar is clamped in the T-slot with self-tapping screws. The included reflector foil can be stuck onto the free side of the adapter block.
Features at a Glance

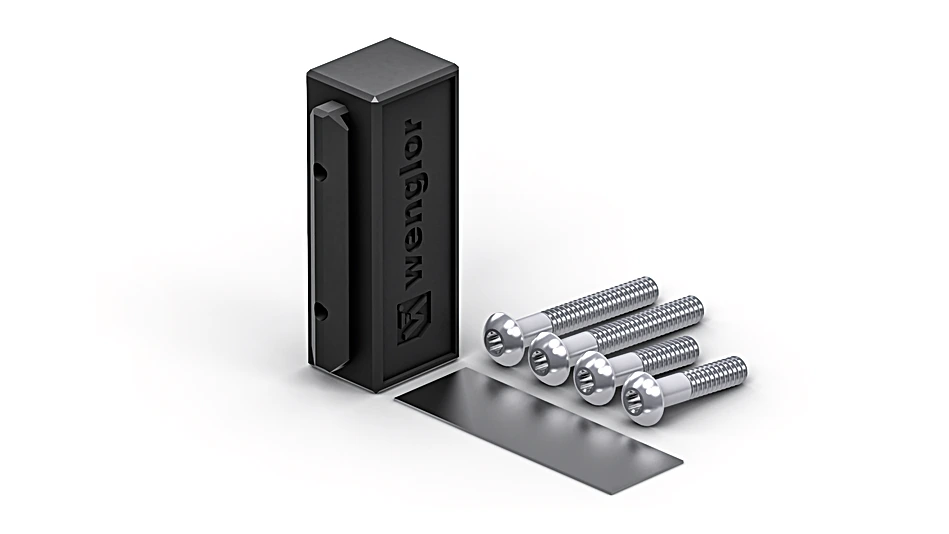

- Included: 1 × adapter block, 1 × reflector foil piece, 2 × M3 × 14 mm screws, 2 × M3 × 18 mm screws
- Double use as sensor and reflector holder possible
- Easy handling
Technical Data
Mechanical Data
| Thread | M3 |
| Mounting type, device-side | can be screwed self-adhesive |
| Mounting type, system-side | Mounting profile |
| Material | Plastic, PA Steel, galvanized |
| Structure | Continuous Structure |
| Weight | 8 g |
General Data
| Scope of delivery | 1 × adapter block 1 × reflector foil 2 × M3 screws × 14 mm |
| Packaging unit | 1 Piece |
| Use | For mounting profile for Reflectors |
