Z1HT001 Mounting Tube for Stainless Steel Fork Sensor
Mounting Tube
In Stock
$151.69
per unit
Description

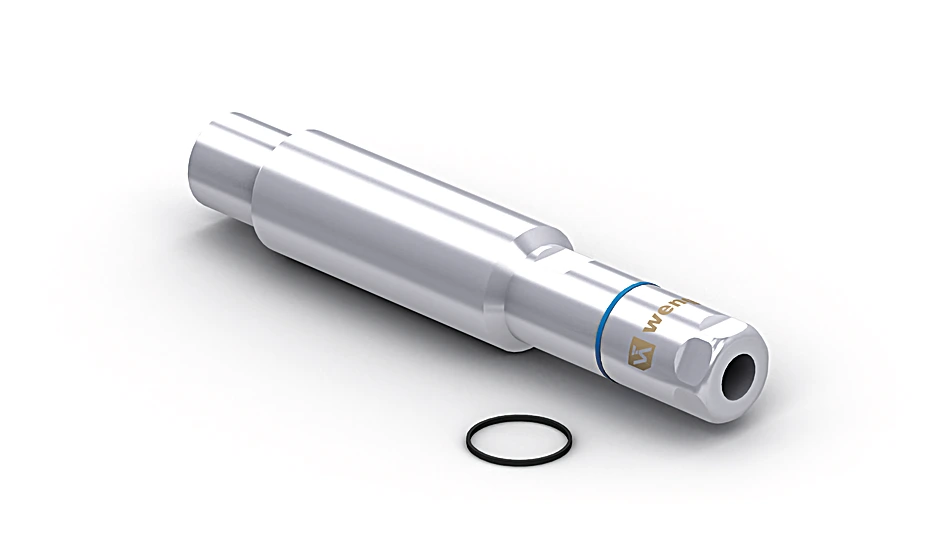

This complete system, which integrates seamlessly into the machine, also includes the mounting tubes. They are made of corrosion- and detergent-resistant 316L stainless steel (1.4404/V4A) and protect every standard connection line with IP68/IP69K degree of protection.
Features at a Glance
- Hygienic design makes it easy to clean
- Resistant to cleaning agents
- Waterproof (IP68/IP69K)
- Made with food safe materials that are FDA approved
Technical Data
Mechanical Data
| Mounting type, device-side | can be screwed |
| Mounting type, system-side | Mounting console/clamp |
| Material | Stainless steel, V4A (1.4404 / 316L) Silicone (FDA) |
| Degree of Protection | IP68 IP69K |
| with threaded cable gland IP68/IP69K | yes |
| For cable diameter | 3 … 6.5 mm |
| Weight | 144 g |
General Data
| Scope of delivery | 1 × mounting tube, 1 × sealing ring 1 × sealing ring |
| Packaging unit | 1 Piece |
| Use | for round housing |
| Hygienic Design | X |
| Detergent resistant | X |
Standards and certificates
 |
