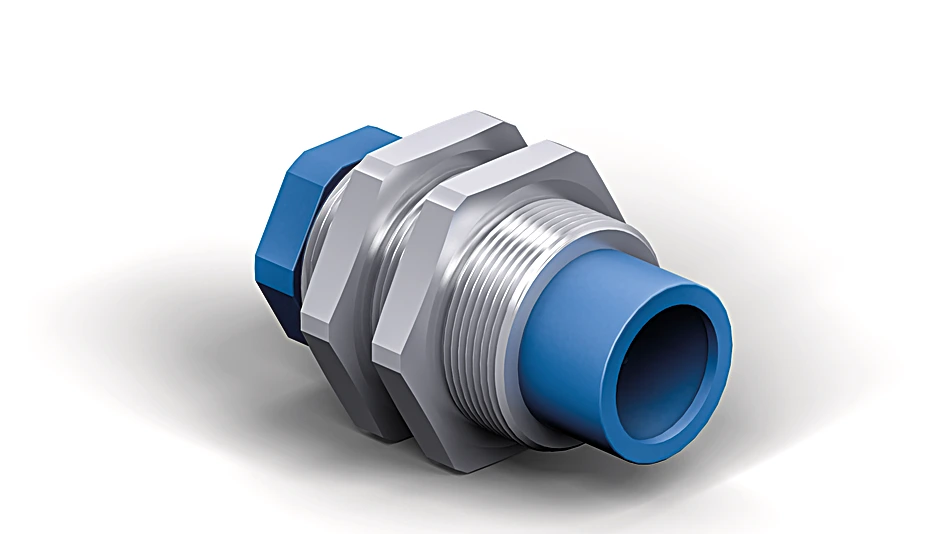

Z18M003 Mounting Console with Fixed Limit Stop for M18 × 1; Non-Flush Mounting
Mounting Console with Fixed Limit Stop
In Stock
$29.82
per unit
Description
Features at a Glance
- Integrated, fixed limit stop for precise sensor positioning
- Time savings thanks to easy installation
- No reduction of the switching distance
- For M18 x 1, non-flush
Technical Data
Mechanical Data
| Material | Stainless steel, V2A (1.4305 / 303) Plastic, PBT |
| Mounting | Non-flush |
| Threaded sleeve tightening torque | max. 4 Nm |
| Clamp retainer tightening torque | 3 Nm |
| Weight | 46 g |
General Data
| Scope of delivery | 1 × mounting console |
| Packaging unit | 1 Piece |
| Use | for threaded housing |
Standards and certificates
 |
