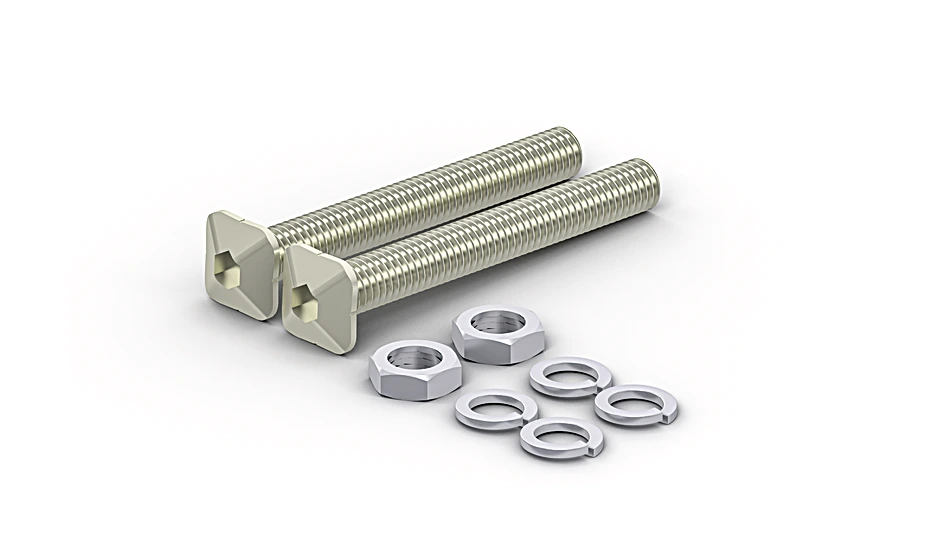

Z0KE001 Mounting for 32/35.5 × 16/18.5 × 12/17 mm (1K/2K)
Mounting
In Stock
$9.68
per unit
Description
The mounting is suitable for direct mounting on the mounting profile. The screw heads of the slot nut screws are inserted into the T-slot, and the sensor or reflector is secured with a nut, washer, and spring washer.
Features at a Glance
- Included: 2 × M3 × 25 mm screws, 2 × M3 spring washers, 2 × washers, 2 × M3 nuts
- Square screw head suitable for T-slot of ZBPW fixing profiles
- Suitable for 1K/2K format
Technical Data
Mechanical Data
| Thread | M3 |
| Length | 25 mm |
| Mounting type, device-side | Screwable with slot nut screw |
| Mounting type, system-side | Mounting profile |
| Material | Stainless steel, 304 |
| For edge length | 10 × 10 mm |
| Weight | 4 g |
General Data
| Scope of delivery | 2 × M3 spring washers 2 × M3 slot nut screws × 25 mm 2 × M3 hex nuts 2 × M3 washers |
| Packaging unit | 1 Piece |
| Use | For mounting profile |
Standards and certificates
 |
Contour types
  |
