Description

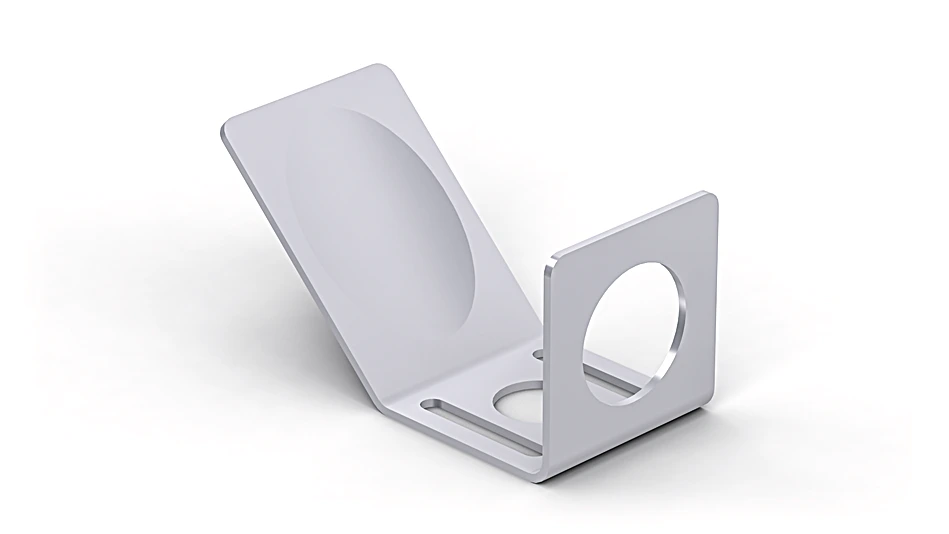

Use of the baffle plate does not influence the range of the ultrasonic sensors. Due to focusing, the sonic cone becomes roughly 3° narrower. The mounting clearance between the sensor’s active surface and the baffle plate must be subtracted from the sensor’s maximum range.
Features at a Glance
- For M30 × 1,5
- Deflection about 90°
- Focussing the ultrasonic cone
Technical Data
Mechanical Data
| Material | Stainless steel, V2A (1.4301 / 1.4303) |
| Deflection about 90° | yes |
| Focusing the sonic cone | yes |
| Weight | 118 g |
General Data
| Scope of delivery | 1 × baffle plate |
| Packaging unit | 1 Piece |
