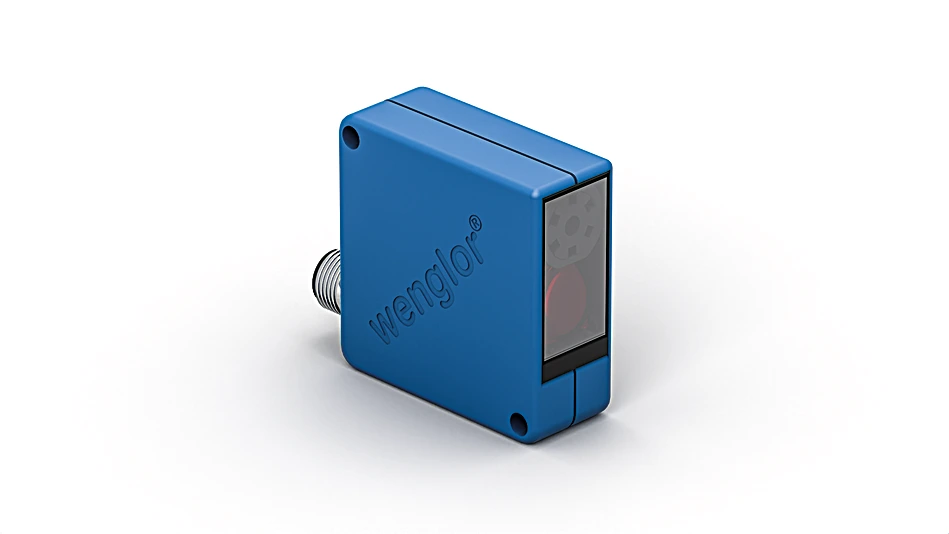

YP06MGVL80 Laser Distance Sensor Triangulation
Laser Distance Sensor
In Stock
$1,618.00
per unit
Applications: Sensors & I/O
Description
These sensors can measure distances and display analog output. Their high resolution and wide variety of measuring ranges allow them to be used in innumerable applications. The output signal is practically independent of the object’s color.
Features at a Glance
- Resolution up to 5 µm
- Linearity: 0,5 %
- Measuring range: 20 mm
Technical Data
Optical Data
| Working Range | 40 … 60 mm |
| Measuring Distance | 50 mm |
| Measuring Range | 20 mm |
| Resolution | 10 µm |
| Linearity | 0.5 % |
| Linearity Deviation | 50 µm |
| Light Source | Laser (red) |
| Wavelength | 655 nm |
| Service Life (T = +25 °C) | 100,000 h |
| Laser Class (EN 60825-1) | 2 |
| Max. Ambient Light | 10,000 Lux |
| Light Spot Diameter | 0.5 mm |
Electrical Data
| Supply Voltage | 18 … 30 V DC |
| Current Consumption (Ub = 24 V) | < 30 mA |
| Cut-Off Frequency | 100 Hz |
| Response Time | 5 ms |
| Temperature Drift (Tu < 10 °C, Tu > 40 °C) | 10 µm/K |
| Temperature Drift (10 °C < Tu < 40 °C) | 7 µm/K |
| Temperature Range | -10 … 60 °C |
| Error Output Voltage Drop | < 2.5 V |
| PNP Error Output/Switching Current | 200 mA |
| Analog Output | 0…10 V |
| Short Circuit Protection | yes |
| Reverse Polarity Protection | yes |
| Overload Protection | yes |
| Protection Class | III |
Mechanical Data
| Housing Material | Plastic, PBT |
| Optic Cover | Glass |
| Full Encapsulation | yes |
| Degree of Protection | IP67 |
| Connection | M12 × 1; 8-pin |
| Weight | 89 g |
General Data
| Scope of delivery | 1 × initial start-up instructions 1 × laser warning sign 1 × sensor |
Output
| Error Output | yes |
| Analog Output | yes |
Standards and certificates
      |
Connection Diagram
 |
Ctrl. Panel
|
03 = Error Indicator
12 = Analog Output Indicator |
