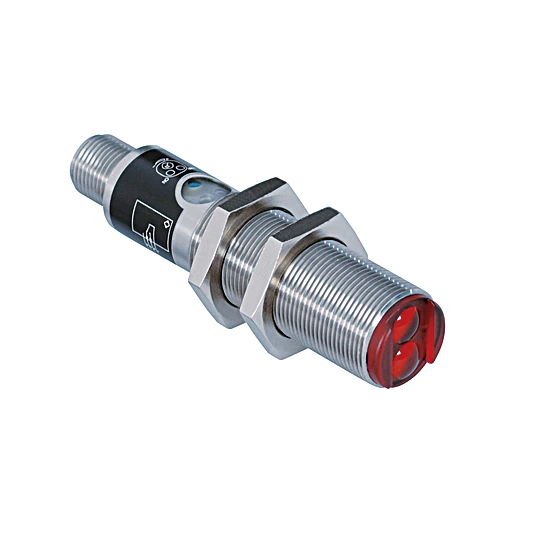

YD24PA3S836 Reflex Sensor with Background Suppression
Reflex Sensor
In Stock
$457.00
per unit
Applications: Sensors & I/O
Description
These sensors detect distance by measuring angles. They are particularly good at recognizing objects in front of any background. The color, shape and surface characteristics of the object have practically no influence on sensor switching performance.
Features at a Glance
- Working range adjusted to 50 mm on Kodak white paper
- Spot diameter: 0,5 mm
- Switching frequency: 1 kHz
- Stainless steel housing
Technical Data
Optical Data
| Range | 50 mm |
| Switching Hysteresis | 5 % |
| Light Source | Laser (red) |
| Wavelength | 655 nm |
| Service Life (T = +25 °C) | 100,000 h |
| Laser Class (EN 60825-1) | 2 |
| Max. Ambient Light | 10,000 Lux |
Electrical Data
| Supply Voltage | 10 … 30 V DC |
| Current Consumption (Ub = 24 V) | < 25 mA |
| Switching Frequency | 1 kHz |
| Response Time | 500 µs |
| Temperature Drift | < 5 % |
| Temperature Range | -25 … 60 °C |
| Switching Output Voltage Drop | < 2.5 V |
| PNP Switching Output/Switching Current | 200 mA |
| Short Circuit Protection | yes |
| Reverse Polarity Protection | yes |
| Overload Protection | yes |
| Protection Class | III |
Mechanical Data
| Setting Method | Potentiometer |
| Housing Material | Stainless steel, V2A (1.4305 / 303) |
| Full Encapsulation | yes |
| Degree of Protection | IP67 |
| Connection | M12 × 1; 4-pin |
| Weight | 67 g |
General Data
| Scope of delivery | 1 × initial start-up instructions 1 × laser warning sign 1 × MUTTER-M18-E003 hex nut 1 × sensor |
Output
| PNP NC, PNP NO | yes |
Standards and certificates
      |
Table 1
| Detection Range | 50 mm | 100 mm | 150 mm |
| Light Spot Diameter | 1,2 mm | < 0,5 mm | 1,5 mm |
Connection Diagram
 |
Ctrl. Panel
|
30 = Switching Status/Contamination Warning
68 = Power LED 05 = Switching Distance Adjuster |
