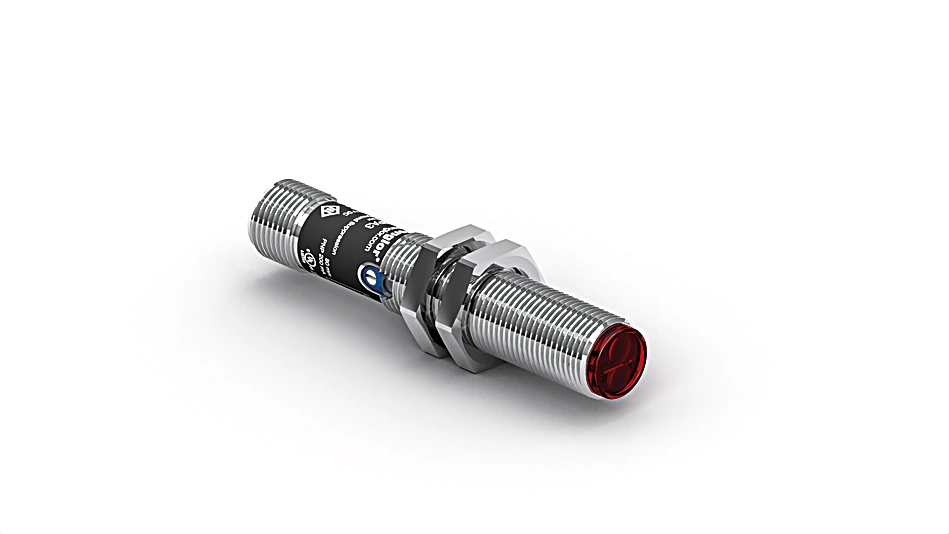

XO89PA3 Retro-Reflex Sensor Universal
Retro-Reflex Sensor
In Stock
$352.00
per unit
Applications: Sensors & I/O
Description
A reflector must be used in combination with these sensors. They can be installed in all kinds of industrial environments thanks to ample functional reserve. Even reflective objects can be reliably recognized through the use of polarized light.
Features at a Glance
- Smallest recognizable part: 0,1 mm
- Spot diameter: 1 mm
- Switching frequency: 3 kHz
Technical Data
Optical Data
| Range | 6,000 mm |
| Reference Reflector/Reflector Foil | RQ100BA |
| Smallest Recognizable Part | 100 µm |
| Switching Hysteresis | < 15 % |
| Light Source | Laser (red) |
| Wavelength | 655 nm |
| Polarization Filter | yes |
| Service Life (T = +25 °C) | 100,000 h |
| Laser Class (EN 60825-1) | 2 |
| Max. Ambient Light | 10,000 Lux |
| Beam Divergence | < 20 mrad |
| Light Spot Diameter | 1 mm |
| Two-Lens Optic | yes |
Electrical Data
| Supply Voltage | 10 … 30 V DC |
| Current Consumption (Ub = 24 V) | < 20 mA |
| Switching Frequency | 3 kHz |
| Response Time | 167 µs |
| Temperature Drift | < 10 % |
| Temperature Range | -25 … 60 °C |
| Switching Output Voltage Drop | < 2.5 V |
| PNP Switching Output/Switching Current | 200 mA |
| Short Circuit Protection | yes |
| Reverse Polarity Protection | yes |
| Overload Protection | yes |
| Protection Class | III |
| FDA Accession Number | 0820585-000 |
Mechanical Data
| Setting Method | Potentiometer |
| Housing Material | Brass, nickel-plated |
| Full Encapsulation | yes |
| Degree of Protection | IP67 |
| Connection | M12 × 1; 4-pin |
| Weight | 16 g |
General Data
| Scope of delivery | 1 × initial start-up instructions 1 × laser warning sign 1 × MUTTER-M12-E001 hex nut 1 × sensor |
Output
| PNP NC, PNP NO | yes |
Adjustable parameters
| Circuit | NC NC+NO NO |
| All other parameters can be found in the product documentation. |
Standards and certificates
      |
Connection Diagram
 |
Ctrl. Panel
|
31 = Switching Status/Contamination-/Short Circuit Warning
05 = Switching Distance Adjuster |
Reflector data
| RQ100BA | 0.15 … 6 m |
| RE18040BA | 0.1 … 2.9 m |
| RQ84BA | 0.25 … 5.4 m |
| RR84BA | 0.05 … 4.9 m |
| RE9538BA | 0.05 … 2 m |
| RE6151BM | 0.05 … 5.2 m |
| RE6151BA | 0.05 … 3 m |
| RR50_A | 0.03 … 4.3 m |
| RE6040BA | 0.05 … 5.2 m |
| RE8222BA | 0.03 … 2.9 m |
| RR34_M | 0.05 … 3 m |
| RE3220BM | 0.05 … 2.5 m |
| RE6210BM | 0.05 … 2 m |
| RR25_M | 0.05 … 2.6 m |
| RR25KP | 0.05 … 1.5 m |
| RR21_M | 0.05 … 2.5 m |
| ZRAE02B01 | 0.4 … 2.5 m |
| ZRME01B01 | 0.4 … 1 m |
| ZRME03B01 | 0.4 … 2.5 m |
| ZRMR02K01 | 0.4 … 1.1 m |
| ZRMS02_01 | 0.4 … 1.4 m |
| RF505 | 0.05 … 1.4 m |
| RF255 | 0.05 … 1.3 m |
| RF508 | 0.05 … 1.3 m |
| RF258 | 0.05 … 1.3 m |
| ZRDF__K01 | 0.2 … 3.8 m |
