Description

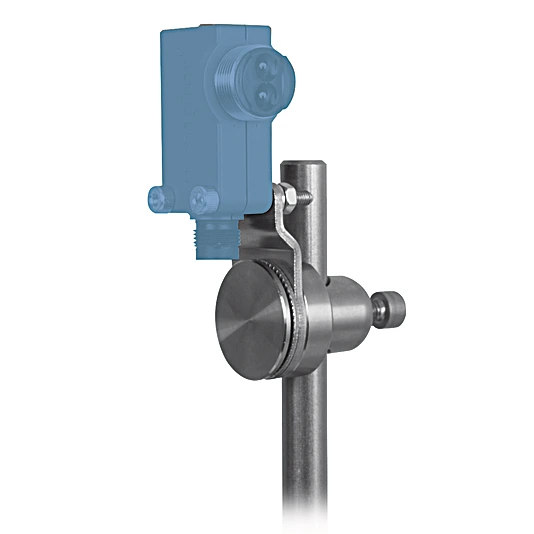

The mounting allows wenglor sensors and reflectors to be easily adjusted and rotated 360° on the vertical and horizontal planes.
Features at a Glance
- Aluminum
- Simple installation
- Flexible alignment options
- For 56,5 × 26 × 16 mm
Technical Data
Mechanical Data
| Mounting type, device-side | Screwable to mounting plate |
| Mounting type, system-side | Mounting bar |
| Material Mounting Head | Aluminum, anodised |
| Material Mounting Plate | Stainless steel, V2A (1.4301 / 304) |
| for Round Profile Diameter | 8 … 13 mm |
| Weight | 58 g |
General Data
| Scope of delivery | 1 × mounting head 1 × mounting plate 1 × M6 screw × 20 mm |
| Packaging unit | 1 Piece |
| Use | for square housing |
Standards and certificates
 |
Alignment possibilities
 |
Contour types
  |
