VISION MXL 3B
Muting, Auto-manual restart + EDM
In Stock
$852.91
per unit
Applications: Safety Systems
Description
Safety Light Curtain: Type 2, SILCL 1, PL c, Cat. 2
Cross Section: 35 x 45 mm
Hardware configuration: no programming necessary, easy to install and replace
Connection and configuration through M12 connectors

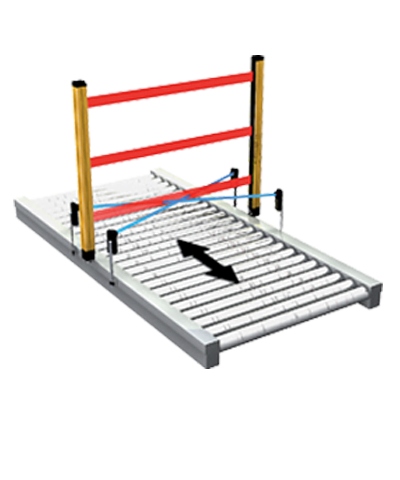

Allows the connection of external Muting sensors to create a Two-Way access control system with Entry-Exit T-Muting logic
Unshielded cables up to 100 m can be used to connect the Safety Light Curtain
What’s in the Box: Emitter, Receiver and Standard Fastening Brackets
Technical Data
Features
| Safety level | Type 2 – PL c |
| Protected height (mm) | 800 |
| Resolution (mm) | Multi-beams |
| Max. range (m) | 8 |
| Restart | Built-in – User selectable automatic or manual |
| Functioning system | Emitter / Receiver |
| Safety level (SIL / PL) | Type 2 – SILCL 1 – PL c – Cat. 2 |
| Operating temperature (°C) | 0 … 55 |
| Response time (ms) | 4,5 |
| Number of beams | 3 |
| Max. length of the connection cables (m) | 100 |
| Muting Function | Integrated |
| Muting logic | T (Two way) logic with 2 sensors – Crossed beams |
| Max. override time-out | 15 min. |
| Max. Muting time-out | 30 sec.; 90 min. or infinite selectable |
| Signalling | LEDs for light curtain’s status and diagnostics |
| Safety output type | 2 fail-safe PNP (500 mA at 24 VDC) with protection against short circuit, overload and reverse polarity |
| Connections | M12 5-pole connector (emitter), M16 12-pole connector (receiver) |
| MTTFD (ISO13849) years | 100 |
| PFHD (IEC 61508) | 1,81E-08 |
| Safety outputs | 2 OSSD PNP (500 mA at 24 VDC) |
| Safety functions | Integrated |
| Detection | Access control |
| Operating Range (m) | From 0,3 to 8 |
| Protective enclosures | None |
| Packaging dimensions HxLxW (mm) | 145 x 1080 x 200 |
| Product class | B |
| Custom tariff | 85365019 |
Electrical data
| Power supply (VDC) | 24 ± 20% |
Mechanical data
| Overall height (mm) | 1011 |
| Cross section dimensions (mm) | 35 x 45 |
| Degree of protection | IP65 |
| Fastening | Back slot, side slot with set of LS type brackets (included) or to the top and lower end with SFB swivel brackets (optional) |
