VISION MXJ BOX 3

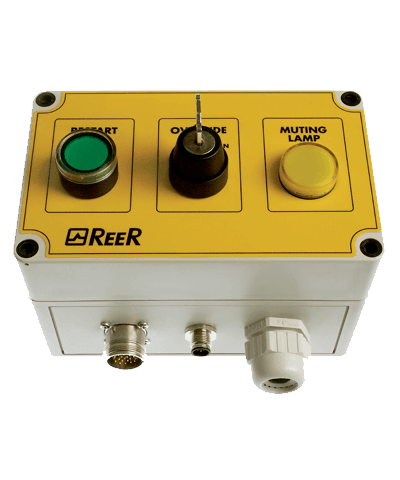

Vision connection box, 2NO+1NC, Override key, Muting Lamp, Restart button
In Stock
$436.69
per unit
Applications: Safety Systems
Description
The MXJ connection boxes are accessory devices designed for a quick and reliable connection of Vision light curtains to provide all major operating controls within the guarded area
Technical Data
Features
| Built-in Muting lamp | Yes |
| Signalling | LEDs for outputs and Muting/Override status |
| Connections | M12 5-pole connector (emitter), M23 19-pole connector (receiver) – Connection box |
| Safety devices to be connected | All Vision MXL safety light curtains models |
| Override selectors | Yes |
| Restart button | Yes |
| Safety relay outputs | 2 NO + 1 NC (2A at 250 VAC) |
| Packaging dimensions HxLxW (mm) | 225 x 210 x 150 |
| Product class | B |
| Custom tariff | 85365019 |
Mechanical data
| Dimensions HxWxD (mm) | 110 x 180 x 110 |
| Fastening | Set of plastic brackets inserted in the holes placed on the box rear side corners (included) |
