Description

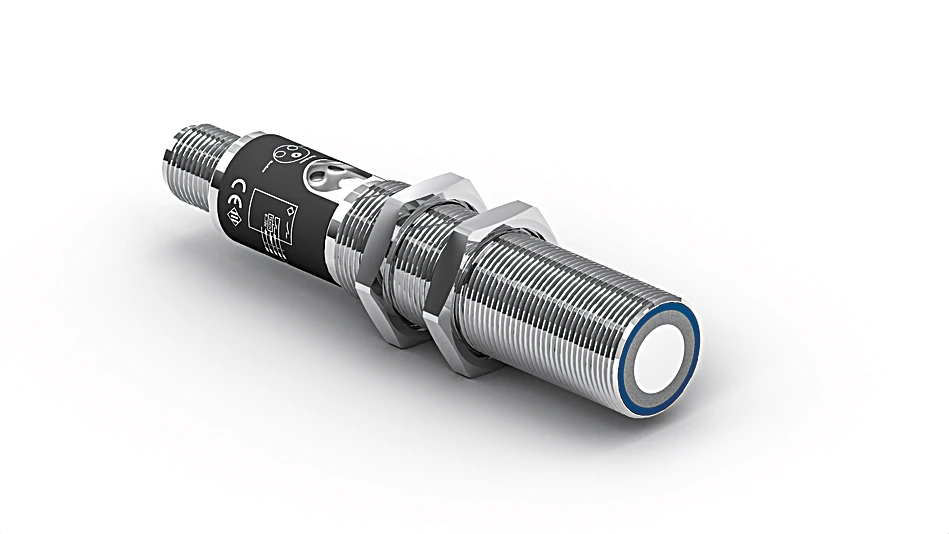

These ultrasonic sensors evaluate the sound reflected from the object. They are capable of detecting almost any object, regardless of material and condition. Thanks to the innovative transducer, this sensor has a particularly wide sonic cone at close range. This means that many different kinds of pieces can be reliably detected on conveyor belts. The sensor can only be used in reflex mode operation. This product has been discontinued, but is still available as a spare part. Successor
Features at a Glance
- Stainless steel housing
- Digital and analog output
- Temperature drift eliminable
- Synchronous mode
Technical Data
Ultrasonic Data
| Working Range | 100 … 1,200 mm |
| Measuring Range | 1,100 mm |
| Reproducibility maximum | 2 mm |
| Linearity Deviation | 7 mm |
| Resolution | 1 mm |
| Ultrasonic Frequency | 240 kHz |
| Opening Angle | < 12 ° |
| Service Life (T = +25 °C) | 100,000 h |
| Switching Hysteresis | 10 mm |
Electrical Data
| Supply Voltage | 18 … 30 V DC |
| Current Consumption (Ub = 24 V) | < 30 mA |
| Switching Frequency | 7 Hz |
| Response Time | 72 ms |
| Temperature Range | -30 … 60 °C |
| Number of Switching Outputs | 1 |
| Switching Output Voltage Drop | < 2.5 V |
| PNP Switching Output/Switching Current | 100 mA |
| Analog Output | 0…10 V |
| Synchronous Mode | up to 40 sensors |
| Short Circuit Protection | yes |
| Reverse Polarity Protection | yes |
| Overload Protection | yes |
| Lockable | yes |
| Interface | IO-Link V1.0 |
| Protection Class | III |
Mechanical Data
| Setting Method | IO-Link Teach input (for switching output) Teach-in (for switching output) |
| Housing Material | Stainless steel, V2A (1.4305 / 303) |
| Sensing face | Epoxy resin/glass bubble mixture Plastic, PBT Silicone |
| Full Encapsulation | yes |
| Degree of Protection | IP67 |
| Connection | M12 × 1; 5-pin |
| Weight | 73 g |
Safety-relevant Data
| MTTFd (EN ISO 13849-1) | 829.12 a |
General Data
| Scope of delivery | 1 × initial start-up instructions 1 × MUTTER-M18-E003 hex nut 1 × sensor |
Output
| PNP NO/NC switchable | yes |
| Analog Output | yes |
| IO-Link | yes |
Adjustable parameters
| Circuit | NC NO |
| Other parameters | Offset Synchronous mode |
| All other parameters can be found in the product documentation. |
Standards and certificates
      |
Connection Diagram
 |
Ctrl. Panel
|
01 = Switching Status Indicator
06 = Teach Button 79 = Run/Error Indicator |
