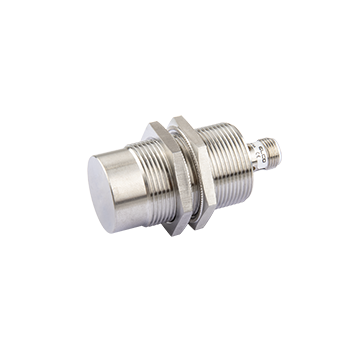

UKS3000-G30-LU17L-Q12 Ultrasonic Sensor
Ultrasonic Sensor, G30-Series, Diffused, Operating range 180…3000 mm, Resolution 1 mm, Analog 5…10 V, 15…30 V DC, -25…70 °C, Switching frequency 9 Hz, IP67, M12 4-pole
In Stock
$305.70
per unit
Applications: Sensors & I/O
Technical Data
| Product size | M30 x 100 mm |
| Supply voltage | 15 … 30 V DC |
| Output status | 0 … 5 V |
| External dimensions | M30 x 1.5 |
| Output type | Analog |
| Ambient temperature | -25 … +70 ℃ |
| IP rating | IP65 |
| Switching frequency | 9 Hz |
| Housing material | Nickel-plated brass |
| Connection | M12, 4-pin |
| Sensing range | 180 … 3000 mm |
