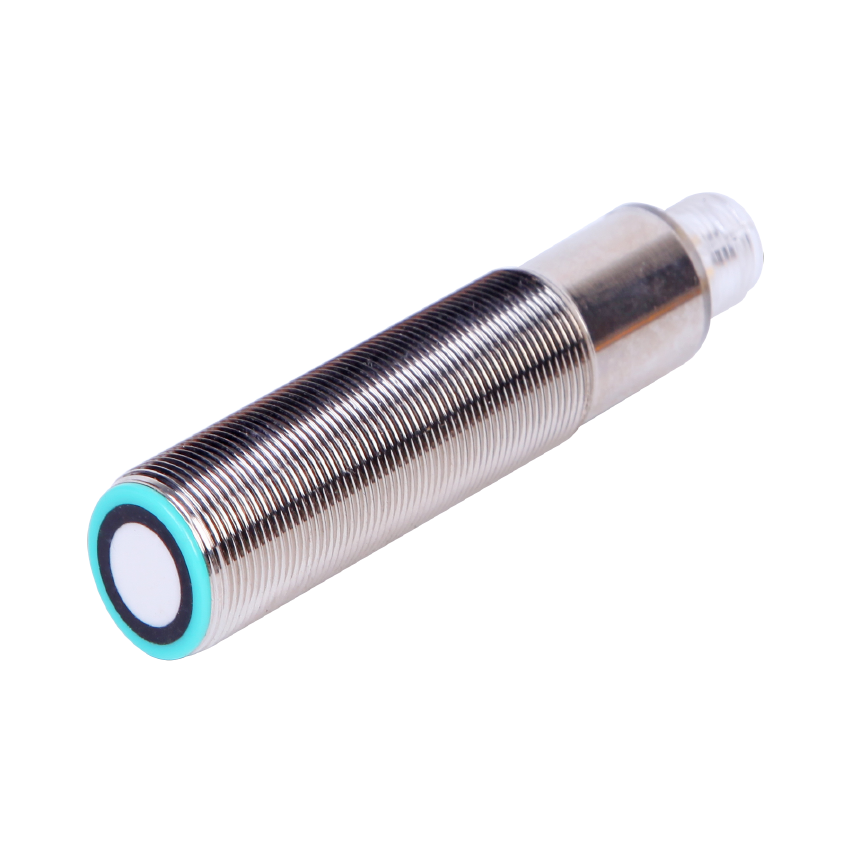

UKS1000-G18-VN7L-Q12 Ultrasonic Sensor
Ultrasonic Sensor, G18-Series, Diffused, Operating range 60…1000 mm, Resolution 0.5 mm, NPN, NC/NO, 15…30 V DC, -25…70 °C, Switching frequency 20 Hz, IP67, M12 4-pole
In Stock
$276.98
per unit
Applications: Sensors & I/O
Technical Data
| Product size | M18 x 89.5 mm |
| Output type | NPN |
| Load current | ≤ 200 mA |
| Supply voltage | 15 … 30 V DC |
| Ambient temperature | -25 … +70 ℃ |
| External dimensions | M18 x 1 |
| Connection | M12, 4-pin |
| Output status | NO / NC |
| IP rating | IP65 |
| Housing material | Nickel-plated brass |
| Switching frequency | 10 Hz |
| Sensing range | 60 … 1000 mm |
