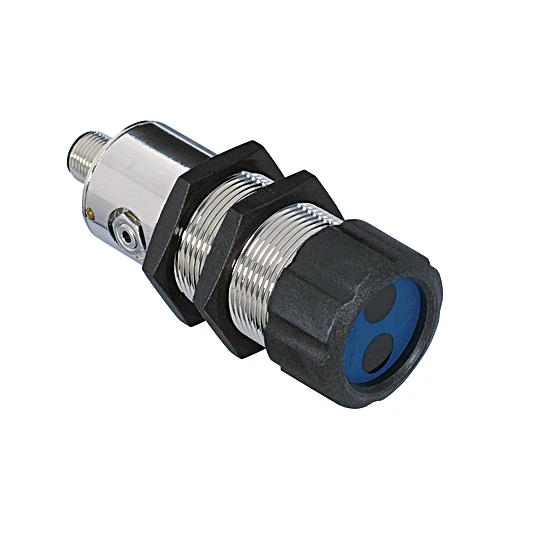

UF87PCV3 Fiber-optic amplifier
Fiber-Optic Amplifier
In Stock
$390.00
per unit
Applications: Sensors & I/O
Description
These sensors are equipped for use with glass fiber optic cables but can be used with or without one. The transmitter and receiver are located in a single housing. The sensor evaluates transmitted light reflected back from the object and the output is switched as soon as an object passes the selected range. Bright objects reflect more light than dark objects, and can thus be recognized from greater distances.
Features at a Glance
- Adaptable for glass fiber-optic cables: reflex and through-beam mode
- Large detection range
Technical Data
Optical Data
| Range | 3,000 mm |
| Switching Hysteresis | < 15 % |
| Light Source | Infrared Light |
| Service Life (T = +25 °C) | 100,000 h |
| Max. Ambient Light | 10,000 Lux |
| Opening Angle | 12 ° |
Electrical Data
| Supply Voltage | 10 … 30 V DC |
| Current Consumption (Ub = 24 V) | < 40 mA |
| Switching Frequency | 100 Hz |
| Response Time | 5 ms |
| Temperature Drift | < 10 % |
| Temperature Range | -25 … 60 °C |
| Switching Output Voltage Drop | < 2.5 V |
| PNP Switching Output/Switching Current | 200 mA |
| Residual Current Switching Output | < 50 µA |
| PNP Contamination Output/Switching Current | 50 mA |
| Short Circuit Protection | yes |
| Reverse Polarity Protection | yes |
| Overload Protection | yes |
| Protection Class | III |
Mechanical Data
| Setting Method | Potentiometer |
| Housing Material | Brass, nickel-plated |
| Optic Cover | Plastic, PC |
| Full Encapsulation | yes |
| Degree of Protection | IP65 |
| Connection | M12 × 1; 4-pin |
| Weight | 154 g |
General Data
| Scope of delivery | 1 × initial start-up instructions 1 × sensor 1 × UEM30KU-01 sleeve nut 2 × MUTTER-M30-E001 hex nuts |
Output
| PNP NO | yes |
Adjustable parameters
| Circuit | NC NC/NO NO |
Standards and certificates
     |
Connection Diagram
 |
Ctrl. Panel
|
05 = Switching Distance Adjuster
30 = Switching Status/Contamination Warning 08 = NO/NC Switch |
