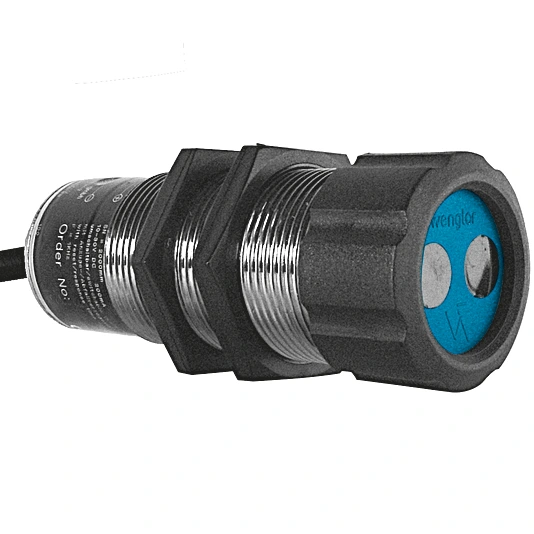

UF66VBFS602-P16 Fiber-optic amplifier
Fiber-Optic Amplifier
In Stock
$1,203.00
per unit
Applications: Sensors & I/O
Description
These sensors are equipped for use with glass fiber optic cables but can be used with or without one. The transmitter and receiver are located in a single housing. The sensor evaluates transmitted light reflected back from the object and the output is switched as soon as an object passes the selected range. Bright objects reflect more light than dark objects, and can thus be recognized from greater distances.
Features at a Glance
- Recognition of small parts
- Switching frequency: 5 kHz
- Adaptable for glass fiber-optic cable
Technical Data
Optical Data
| Range | 1,000 mm |
| Switching Hysteresis | < 15 % |
| Light Source | Infrared Light |
| Service Life (T = +25 °C) | 100,000 h |
| Max. Ambient Light | 10,000 Lux |
| Opening Angle | 12 ° |
Electrical Data
| Supply Voltage | 10 … 30 V DC |
| Current Consumption (Ub = 24 V) | < 40 mA |
| Switching Frequency | 5 kHz |
| Response Time | 100 µs |
| Temperature Drift | < 10 % |
| Temperature Range | -10 … 60 °C |
| Switching Output Voltage Drop | < 2.5 V |
| Switching Output/Switching Current | 200 mA |
| Residual Current Switching Output | < 50 µA |
| Short Circuit Protection | yes |
| Reverse Polarity Protection | yes |
| Overload Protection | yes |
| Protection Class | III |
Mechanical Data
| Setting Method | Potentiometer |
| Housing Material | Brass, nickel-plated |
| Full Encapsulation | yes |
| Degree of Protection | IP65 |
| Connection | Cable; 3-wire |
| Cable length (L) | 4 m |
| Wire cross-section | 0.5 mm² |
| Weight | 372 g |
General Data
| Scope of delivery | 1 × sensor 1 × UEM30ME-01 sleeve nut 2 × MUTTER-M30-E001 hex nuts |
Output
| PNP NO | yes |
Additional product information
| External Information | Off-Delay: 150 ms |
Standards and certificates
     |
Connection Diagram
 |
Ctrl. Panel
|
01 = Switching Status Indicator
05 = Switching Distance Adjuster |
