UF22MV3 Fiber-optic amplifier
Fiber-Optic Amplifier
In Stock
$462.00
per unit
Applications: Sensors & I/O
Description
This sensor is especially well suited for applications with glass fiber-optic light curtains using the through-beam sensor principle.
Features at a Glance
- Analog output (0…10 V DC)
- Linear output signal proportional to obstruction of glass fiber
- Adjustable slope
Technical Data
Optical Data
| Functional principle | Through-beam mode |
| Working Range | 60 … 240 mm |
| Measuring Range | 180 mm |
| Resolution | 2 % |
| Light Source | Red Light |
| Wavelength | 660 nm |
| Service Life (T = +25 °C) | 100,000 h |
| Max. Ambient Light | 10,000 Lux |
| Opening Angle | 12 ° |
Electrical Data
| Supply Voltage | 20 … 30 V DC |
| Current Consumption (Ub = 24 V) | < 40 mA |
| Switching Frequency | 50 Hz |
| Response Time | 10 ms |
| Temperature Drift | 3 % |
| Temperature Range | -10 … 60 °C |
| Analog Output | 0…10 V |
| Output Resistance Analog Output | 1 kOhm |
| Short Circuit Protection | yes |
| Reverse Polarity Protection | yes |
| Protection Class | III |
Mechanical Data
| Setting Method | Potentiometer |
| Housing Material | Brass, nickel-plated |
| Optic Cover | Glass |
| Full Encapsulation | yes |
| Degree of Protection | IP65 |
| Connection | M12 × 1; 4-pin |
| Weight | 139 g |
Safety-relevant Data
| MTTFd (EN ISO 13849-1) | 1,580.26 a |
General Data
| Scope of delivery | 1 × initial start-up instructions 1 × sensor 1 × UEM30KU-01 sleeve nut 2 × MUTTER-M30-E001 hex nuts |
Output
| Analog Output | yes |
Standards and certificates
     |

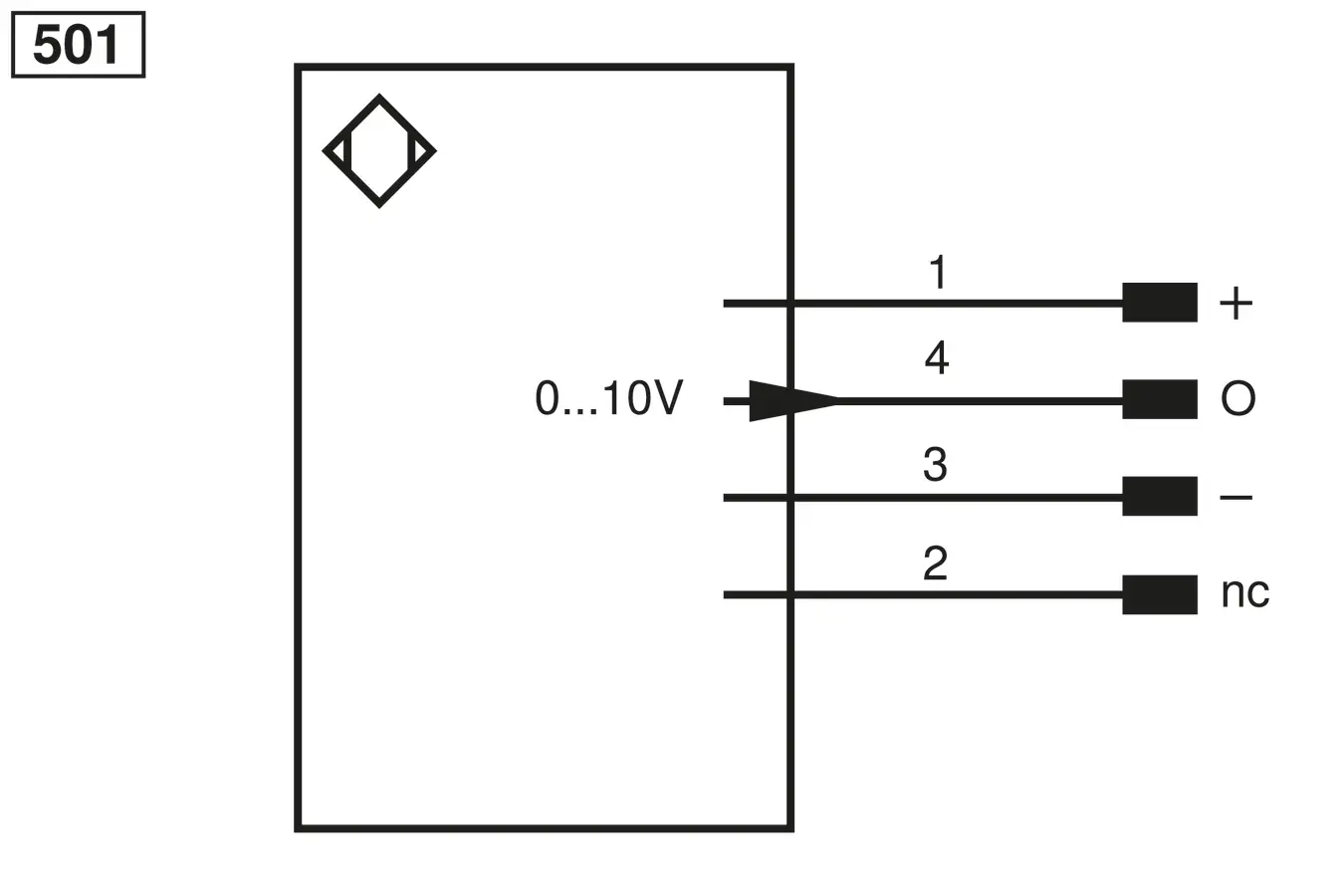

Connection Diagram
 |
Ctrl. Panel
|
12 = Analog Output Indicator
16 = Working Distance Adjustment 19 = Zero Adjustment |
