Description

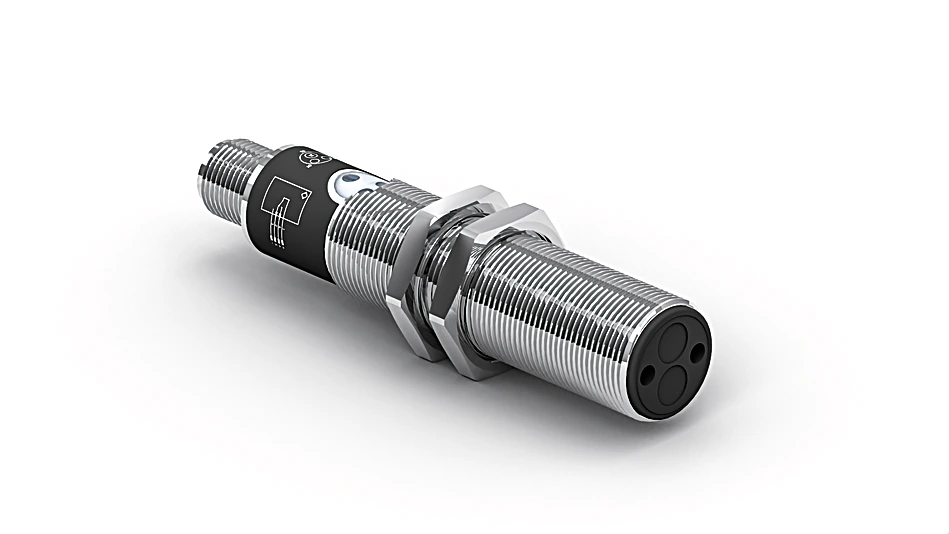

The transmitter and receiver in these sensors are located in a single housing. The sensor evaluates transmitted light reflected back from the object. The output is switched as soon as an object passes the selected range. Bright objects reflect more light than dark objects, and can thus be recognized from greater distances.
Features at a Glance
- Stainless steel housing
- Large detection range
Technical Data
Optical Data
| Range | 1,000 mm |
| Switching Hysteresis | < 15 % |
| Light Source | Infrared Light |
| Service Life (T = +25 °C) | 100,000 h |
| Max. Ambient Light | 10,000 Lux |
| Opening Angle | 12 ° |
Electrical Data
| Supply Voltage | 10 … 30 V DC |
| Current Consumption (Ub = 24 V) | < 40 mA |
| Switching Frequency | 1 kHz |
| Response Time | 500 µs |
| Temperature Drift | < 10 % |
| Temperature Range | -25 … 60 °C |
| Switching Output Voltage Drop | < 2.5 V |
| PNP Switching Output/Switching Current | 200 mA |
| Residual Current Switching Output | < 50 µA |
| Short Circuit Protection | yes |
| Reverse Polarity Protection | yes |
| Overload Protection | yes |
| Protection Class | III |
Mechanical Data
| Setting Method | Potentiometer |
| Housing Material | Plastic, PBT |
| Full Encapsulation | yes |
| Degree of Protection | IP67 |
| Connection | M12 × 1; 4-pin |
| Weight | 43 g |
Safety-relevant Data
| MTTFd (EN ISO 13849-1) | 1,964.65 a |
General Data
| Scope of delivery | 1 × initial start-up instructions 1 × MUTTER-M18-E003 hex nut 1 × sensor |
Output
| PNP NO | yes |
Adjustable parameters
| Circuit | NC NC/NO NO |
| All other parameters can be found in the product documentation. |
Standards and certificates
     |
Connection Diagram
 |
Ctrl. Panel
|
05 = Switching Distance Adjuster
02 = Contamination Warning 01 = Switching Status Indicator 08 = NO/NC Switch |
