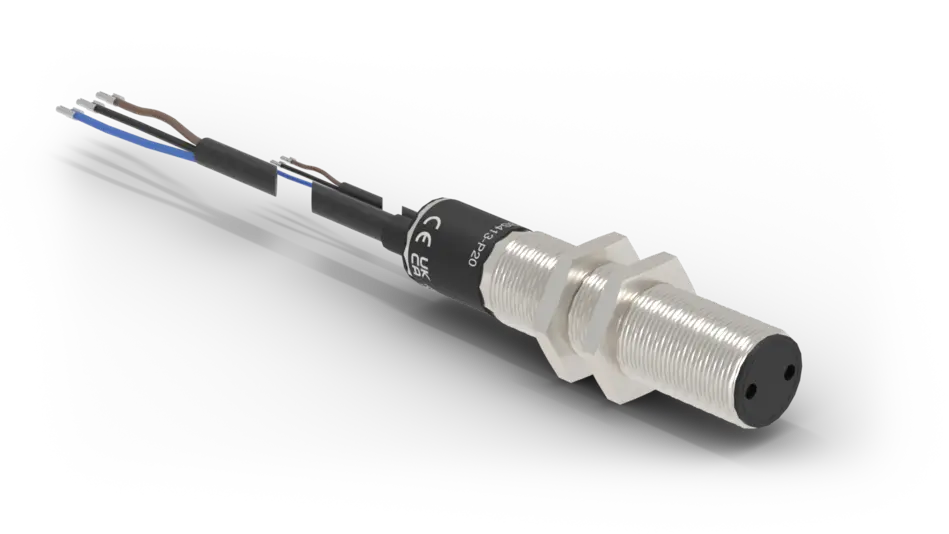

TC66PBS413 Reflex Sensor Energetic
Reflex Sensor
In Stock
$1,046.77
per unit
Applications: Sensors & I/O
Description
The transmitter and receiver in these sensors are located in a single housing. The sensor evaluates transmitted light reflected back from the object. The output is switched as soon as an object passes the selected range. Bright objects reflect more light than dark objects, and can thus be recognized from greater distances. This product has been discontinued, but is still available as a spare part. Successor
Features at a Glance
- Large detection range
Technical Data
Optical Data
| Range | 1,000 mm |
| Switching Hysteresis | < 15 % |
| Light Source | Infrared Light |
| Service Life (T = +25 °C) | 100,000 h |
| Max. Ambient Light | 10,000 Lux |
| Opening Angle | 12 ° |
Electrical Data
| Supply Voltage | 10 … 30 V DC |
| Current Consumption (Ub = 24 V) | < 40 mA |
| Switching Frequency | 200 Hz |
| Response Time | 2.5 ms |
| Temperature Drift | < 10 % |
| Temperature Range | -20 … 60 °C |
| Switching Output Voltage Drop | < 2.5 V |
| PNP Switching Output/Switching Current | 200 mA |
| Residual Current Switching Output | < 50 µA |
| Short Circuit Protection | yes |
| Reverse Polarity Protection | yes |
| Overload Protection | yes |
| Protection Class | III |
Mechanical Data
| Setting Method | Potentiometer |
| Housing Material | Brass, nickel-plated |
| Full Encapsulation | yes |
| Degree of Protection | IP65 |
| Connection | Cable; 3-wire |
| Cable length (L) | 2 m |
| Wire cross-section | 0.5 mm² |
| Weight | 197 g |
General Data
| Scope of delivery | 1 × MUTTER-M18-E001 hex nut 1 × sensor |
Output
| PNP NO | yes |
Standards and certificates
    |
Connection Diagram
 |
Ctrl. Panel
|
05 = Switching Distance Adjuster
30 = Switching Status/Contamination Warning |
