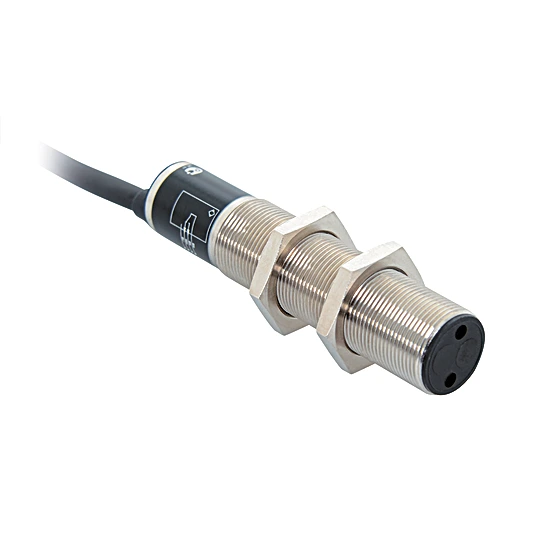

TC66PA-P16 Reflex Sensor Energetic
Reflex Sensor
In Stock
$462.00
per unit
Applications: Sensors & I/O
Description
Features at a Glance
- Large detection range
- Cable: 4 m
Technical Data
Optical Data
| Range | 1,000 mm |
| Switching Hysteresis | < 15 % |
| Light Source | Infrared Light |
| Service Life (T = +25 °C) | 100,000 h |
| Max. Ambient Light | 10,000 Lux |
| Opening Angle | 12 ° |
Electrical Data
| Supply Voltage | 10 … 30 V DC |
| Current Consumption (Ub = 24 V) | < 40 mA |
| Switching Frequency | 200 Hz |
| Response Time | 2.5 ms |
| Temperature Drift | < 10 % |
| Temperature Range | -10 … 60 °C |
| Switching Output Voltage Drop | < 2.5 V |
| PNP Switching Output/Switching Current | 200 mA |
| Residual Current Switching Output | < 50 µA |
| Short Circuit Protection | yes |
| Reverse Polarity Protection | yes |
| Overload Protection | yes |
| Protection Class | III |
Mechanical Data
| Setting Method | Potentiometer |
| Housing Material | Brass, nickel-plated |
| Degree of Protection | IP67 |
| Connection | Cable; 4-wire |
| Cable length (L) | 4 m |
| Cable Jacket Material | PVC |
| Wire cross-section | 0.5 mm² |
| Weight | 249 g |
General Data
| Scope of delivery | 1 × MUTTER-M18-E001 hex nut 1 × sensor |
Output
| PNP NC, PNP NO | yes |
Adjustable parameters
| Circuit | NC NC+NO NO |
| All other parameters can be found in the product documentation. |
Standards and certificates
     |
Connection Diagram
 |
Ctrl. Panel
|
05 = Switching Distance Adjuster
30 = Switching Status/Contamination Warning |
