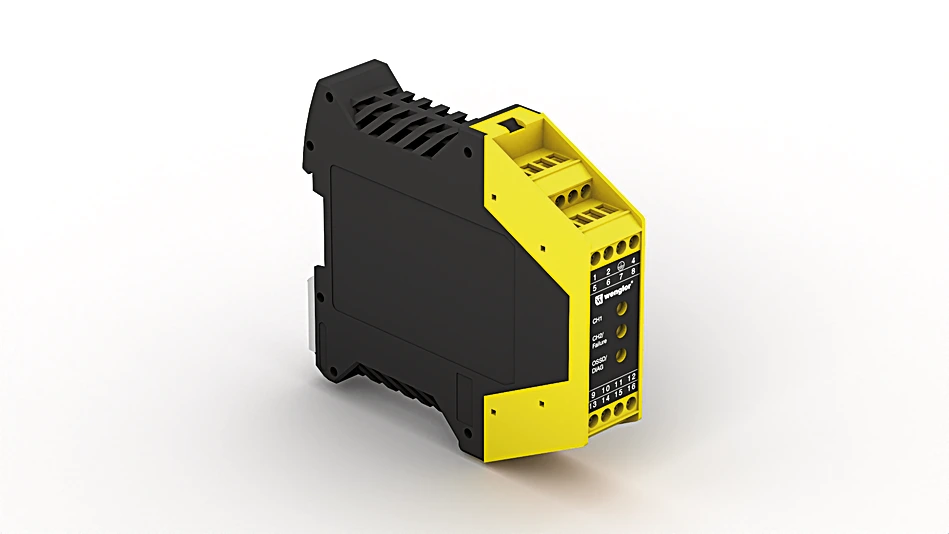

SS2-00VA000R2 Safety Analysis Module for Safety Through-Beam Sensor
Safety Analysis Module
In Stock
$454.15
per unit
Applications: Safety Systems, Sensors & I/O
Description
The analysis module is used to monitor up to 4 through-beam sensors. Interruption of one or more beams results in deactivation of the safety output. This product has been discontinued, but is still available as a spare part. Successor Discontinuation Info
Features at a Glance
- Please note: According to Machinery Directive 2006/42/EC, this article may only be used as a spare part.
- Four through-beam sensors can be connected
- Potential-free safety relay outputs
- Monitoring of external safety relays
Technical Data
Electrical Data
| Supply Voltage | 24 V DC |
| Current Consumption (Ub = 24 V) | < 260 mA |
| Response Time | < 80 ms |
| Temperature Range | 0 … 55 °C |
| Safety Output | Relay |
| Number of safety outputs (OSSDs) | 2 |
| Switching Output Voltage Drop | < 3 V |
| PNP Switching Output/Switching Current | < 100 mA |
| Relay Output/Switching Current (250 VAC) | 2 A |
| Reverse Polarity Protection | yes |
| Protection Class | II |
Mechanical Data
| Housing Material | Plastic, PA |
| Degree of Protection | IP20 |
| Connection | Screw Clamp |
| Weight | 186 g |
Safety-relevant Data
| Safety Category (EN ISO 13849-1) | 2 |
| Performance Level (EN ISO 13849-1) | PL c |
| PFHD | 3,16 × E-7 1/h * |
| Safety Integrity Level (EN 62061) | SILCL 1 |
Function
| Restart Inhibit | yes |
| Contactor Monitoring | yes |
Standards and certificates
  |
Connection Table
 |
Ctrl. Panel
|
71 = Channel 1
72 = Channel 2/Error Indicator 73 = OSSD/Diagnosis |
