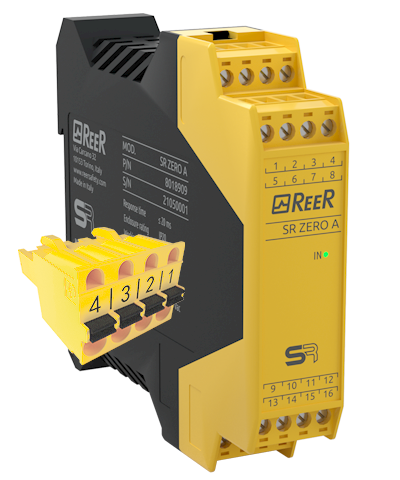

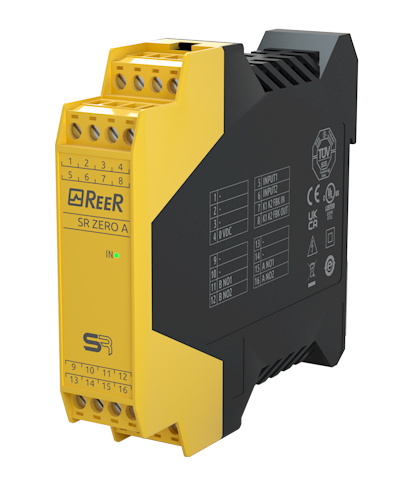

SR ZERO AC
Safety interface, relay with 2 NO contacts
In Stock
$96.90
per unit
Applications: HMI & Controls, Safety Systems
Description
Safety relay modules for safety light curtains with feedback input for EDM, such as EOS4X, Admiral AX, etc.
With forcibly guided contact safety relays, 2 NO. Whit clamp terminal blocks
Technical Data
Features
| Safety level | PL e |
| Safety level (SIL / PL) | PL e – Cat. 4 |
| Operating temperature (°C) | – 30 … 55 |
| Response time (ms) | ≤ 20 |
| Signalling | LEDs indication for input status |
| Connections | Removable terminal blocks, clamp contacts |
| MTTFD (ISO13849) years | The values depend on the type of use. Refer to the technical manual |
| PFHD (IEC 61508) | The values depend on the type of use. Refer to the technical manual |
| Safety devices to be connected | Safety devices with feedback input for external relay monitor (EDM), such us EOS4 X , EOS2 X, Admiral AX, Vision VX/VXL/MXL and Janus |
| Safety relay outputs | 2 NO (6A at 250 VAC) |
| Packaging dimensions HxLxW (mm) | 36 x 128 x 118 |
| Product class | B |
| Custom tariff | 8536508090 |
Electrical data
| Power supply (VDC) | 24 ± 20% |
Mechanical data
| Dimensions HxWxD (mm) | 99 x 22,5 x 114,5 |
| Degree of protection | IP2X |
| Fastening | 35 mm DIN rail fastening according to EN 50022-35 standard |
