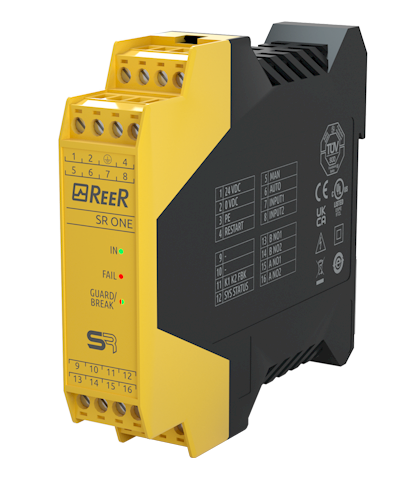

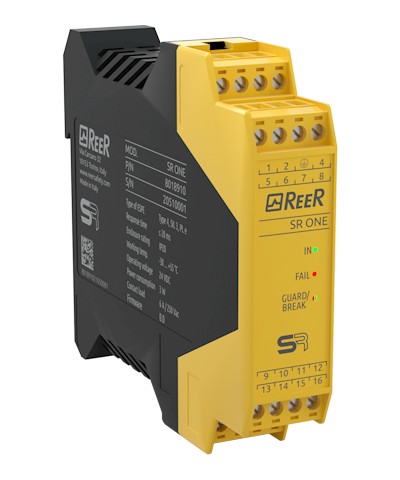

SR ONE
Safety Interface for safety light curtains
In Stock
$181.70
per unit
Applications: HMI & Controls, Safety Systems
Description
Safety Interface module for OSSD output devices. Safety light curtains: EOS4 A, EOS2 A, Admiral AD, Admiral AX BK, Vision V
Safety switches: Magnus RFID
Safety laser scanner: UAM
– Guided-contact safety relays
– Start/Restart interlock
– EDM Feedback input for extra external contactors monitoring
Technical Data
Features
| Safety level | Type 4 – PL e |
| Safety level (SIL / PL) | Type 4 – SILCL 3 – PL e – Cat. 4 |
| Operating temperature (°C) | – 30 … 55 |
| Response time (ms) | ≤ 20 |
| Signalling | LEDs indication of power on, connected light curtains status and fault diagnosis |
| Connections | Removable terminal blocks, screw contacts |
| MTTFD (ISO13849) years | The values depend on the type of use. Refer to the technical manual |
| PFHD (IEC 61508) | The values depend on the type of use. Refer to the technical manual |
| Safety devices to be connected | OSSD outpt devices. Safety light curtains: EOS4 A, EOS2 A, Admiral AD, Admiral AX BK, Vision V. Safety switches: Magnus RFID. Safety laser scanner: UAM |
| Start/Restart | Automatic/Manual monitored selectable |
| Safety relay outputs | 2 NO (6A at 250 VAC) |
| Packaging dimensions HxLxW (mm) | 36 x 128 x 118 |
| Product class | A |
| Custom tariff | 8536508090 |
Electrical data
| Power supply (VDC) | 24 ± 20% |
Mechanical data
| Dimensions HxWxD (mm) | 99 x 22,5 x 114,5 |
| Degree of protection | IP2X |
| Fastening | 35 mm DIN rail fastening according to EN 50022-35 standard |
