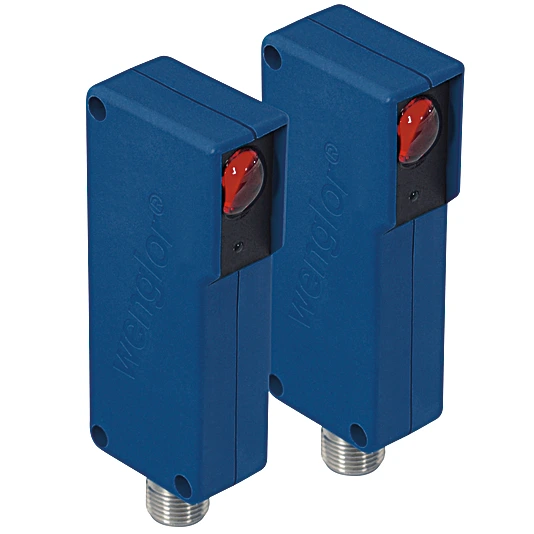

SN6003 Through-Beam Sensor
Through-Beam Sensor
In Stock
$599.54
per unit
Applications: Sensors & I/O
Description
These through-beam sensors are best suited for use in industrial environments. Thanks to their large working range, the devices demonstrate excellent functional reliability in highly contaminated environments. The sensors can be checked for correct functioning via the test input. This product has been discontinued, but is still available as a spare part. Successor
Features at a Glance
- Glass lenses
- Test input
- Range: 60 m
Technical Data
Optical Data
| Range | 60,000 mm |
| Light Source | Red Light |
| Service Life (T = +25 °C) | 100,000 h |
| Opening Angle | 4 ° |
Electrical Data
| Sensor Type | Emitter |
| Supply Voltage | 15 … 30 V DC |
| Current Consumption (Ub = 24 V) | < 30 mA |
| Temperature Drift | < 10 % |
| Temperature Range | -30 … 55 °C |
| Reverse Polarity Protection | yes |
| Protection Class | III |
Mechanical Data
| Housing Material | Plastic, PBT |
| Full Encapsulation | yes |
| Degree of Protection | IP67 |
| Connection | M12 × 1; 4-pin |
| Optic Cover | Glass |
| Weight | 81 g |
General Data
| Scope of delivery | 1 × BEF-SET-02 mounting set 1 × initial start-up instructions 1 × sensor |
Standards and certificates
     |
Connection Diagram
 |
Ctrl. Panel
|
04 = Function Indicator
|
