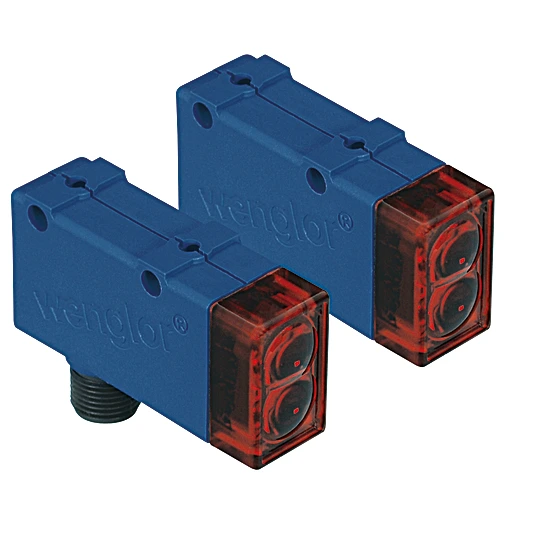

Description
These through-beam sensors are best suited for use in industrial environments. Thanks to their large working range, the devices demonstrate excellent functional reliability in highly contaminated environments. The sensors can be checked for correct functioning via the test input.
Features at a Glance
- Compact housing
- Red light
- Test input
Technical Data
Optical Data
| Range | 10,000 mm |
| Light Source | Red Light |
| Service Life (T = +25 °C) | 100,000 h |
| Opening Angle | 4 ° |
Electrical Data
| Sensor Type | Emitter |
| Supply Voltage | 10 … 30 V DC |
| Current Consumption (Ub = 24 V) | < 40 mA |
| Temperature Drift | < 10 % |
| Temperature Range | -10 … 60 °C |
| Reverse Polarity Protection | yes |
| Protection Class | III |
Mechanical Data
| Housing Material | Plastic, PBT |
| Full Encapsulation | yes |
| Degree of Protection | IP67 |
| Connection | M12 × 1; 4-pin |
| Weight | 25 g |
Standards and certificates
     |
Connection Diagram
 |
Ctrl. Panel
|
04 = Function Indicator
|
