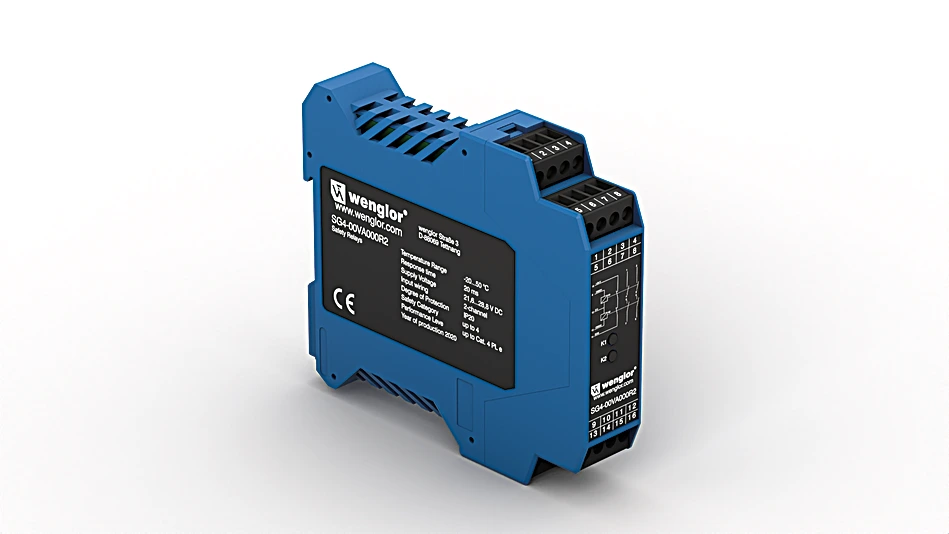

SG4-00VA000R2 Safety Relay Basic Module
Safety Relay
In Stock
$221.54
per unit
Applications: Safety Systems, Sensors & I/O
Description
In combination with the safety light curtains SG-I and safety light arrays SB-I, the relay unit allows for the interruption of safety-relevant circuits. Floating safety relays are utilized.
Features at a Glance
- Potential-free load interruption
- Terminal block
- Switching status indicator
Technical Data
Electrical Data
| Supply Voltage | 21.6 … 28.8 V DC |
| Input wiring | 2-channel |
| Response time (automatic start) | 20 ms |
| Fall time (emergency stop) | 8 ms |
| Temperature Range | -20 … 50 °C |
| Number of Safety Outputs stop 0 | 2 |
| Switching current safety output (250 V AC) | 3 A |
Mechanical Data
| Housing Material | Plastic, PA |
| Degree of Protection | IP20 |
| Connection | Screw-type connection (pluggable) |
| Clampable Wire Cross-Section | 0.25 … 2.5 mm² |
| DIN-Rail mounting | 35 mm |
| Weight | 210 g |
Safety-relevant Data
| Safety Category (EN ISO 13849-1), Stop 0 | up to 4 |
| Performance Level (EN ISO 13849-1), Stop 0 | up to Cat. 4 PL e |
| Mission Time TM (EN ISO 13849-1) | 20 a |
| Stop Category (EN 60204-1) | 0 |
| B10d Switching Cycles (mechanical) | 40 000 000 |
| B10d Switching Cycles (60 % load) | 400 000 |
| B10d Switching Cycles (100 % load) | 200 000 |
General Data
| Scope of delivery | 1 × quick start 1 × safety light array |
Function
| Start, automatically | yes |
| Input signal OSSD | yes |
Output
| NO | yes |
Standards and certificates
   |

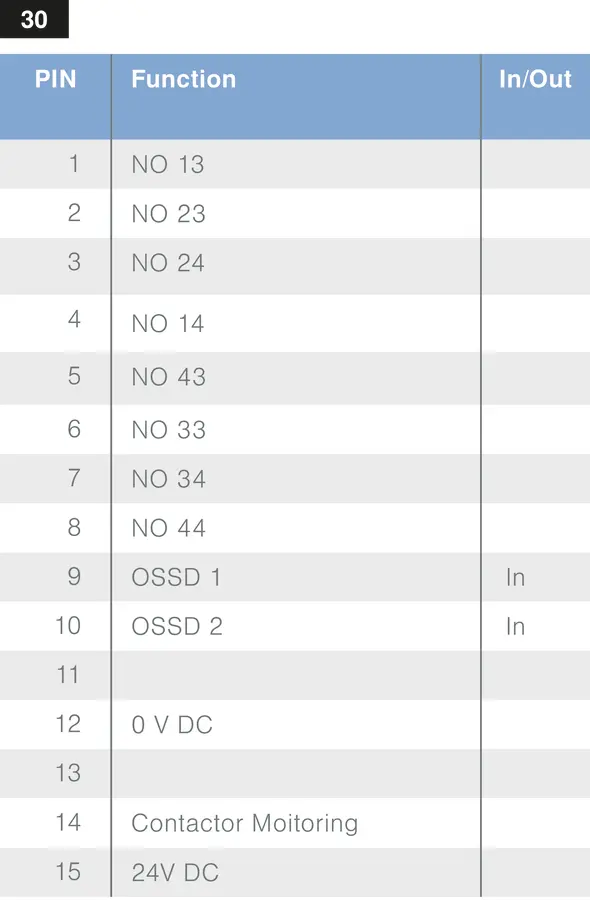

Connection Table
 |
Ctrl. Panel
|
71 = Channel 1
87 = Channel 2 |
