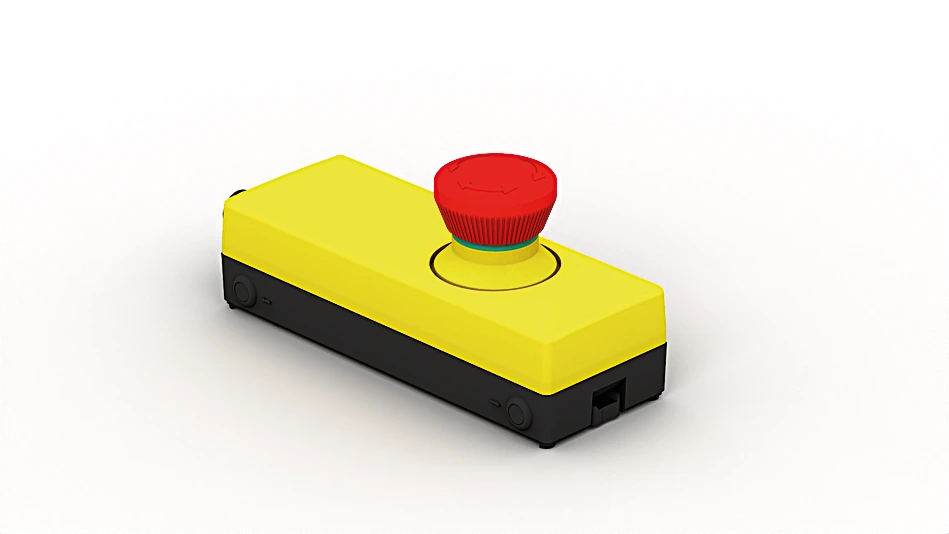

SEM21N0189 Emergency Stop Switch Complete Set
Emergency Stop Switch
In Stock
$169.85
per unit
Applications: Safety Systems, Sensors & I/O
Description
Features at a Glance
- Simple installation on profiles and walls
- Unlocking by turning left or right
- M12 connection
- Slender housing
Technical Data
Electrical Data
| Temperature Range | -25 … 70 °C |
| Storage temperature | -25 … 85 °C |
| Protection Class | II |
Mechanical Data
| Housing Material | Plastic |
| Service Life (Activations) | 50000 |
| Service Life (Switching Cycle) | 50000 |
| Bounce time | < 10 ms |
| Degree of Protection | IP65 |
| Installation Type | Setting up |
| Unlocking | turning |
| Connection | M12 × 1; 8-pin |
| Weight | 158 g |
Safety-relevant Data
| B10d Switching Cycles | 250 000 |
| Number of positively driven contacts | 2 |
| Number of NO | 1 |
General Data
| Scope of delivery | 1 × emergency stop switch |
Function
| Switching position indicator | yes |
Standards and certificates
      |
Connection Diagram
 |
