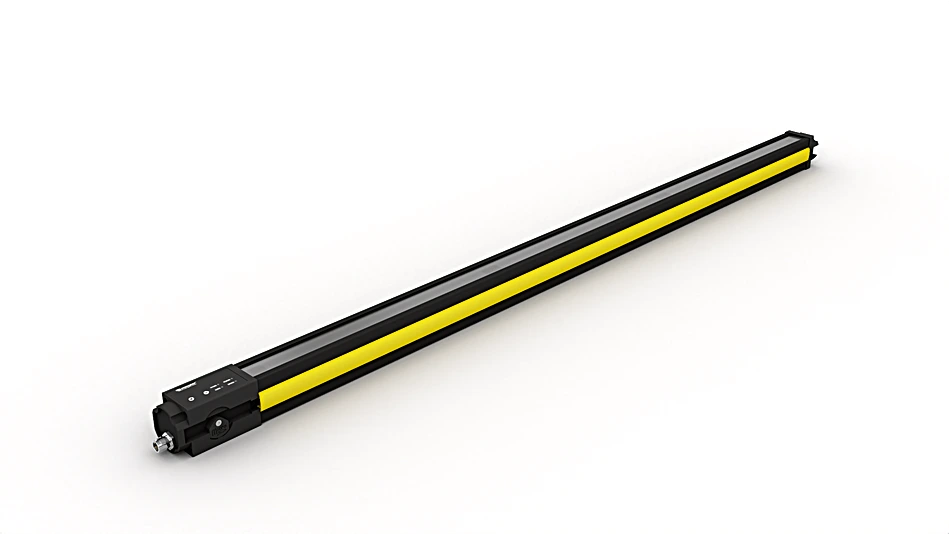

SEFB514 Safety Light Array Body Protection
Safety Light Array
In Stock
$1,305.23
per unit
Applications: Safety Systems, Sensors & I/O
Description
The safety light array can be attached anywhere thanks to the T slot and mounting bracket. The visible red light and signal strength display make it easy to align the emitter and the receiver. Safety operating mode, restart inhibit and contactor monitoring are included as standard functions. The user-friendly IO-Link and wenglor software wTeach2 are used for configuration. In addition, safety light arrays provide various muting features for transporting material through hazardous areas. Optional LED indicator stripes visualize the various muting phases.
Features at a Glance
- Simple configuration and diagnosis with wTeach2 software
- Increased safety thanks to intelligent muting functions
- Multifunctional thanks to measuring function
- Quick duplication of settings via microSD memory card
Technical Data
Optical Data
| Range | 0.5 … 50 m |
| Beam Distance | 300 mm |
| Number of Beams | 4 |
| Light Source | Red Light |
| Wavelength | 630 nm |
| Opening Angle | ± 2.5 ° |
Electrical Data
| Sensor Type | Emitter |
| Supply Voltage | 19.2 … 28.8 V DC |
| Current Consumption (Ub = 24 V) | ≤ 100 mA |
| Temperature Range | -30 … 55 °C |
| Storage temperature | -30 … 70 °C |
| Reverse Polarity Protection | yes |
| Protection Class | III |
Mechanical Data
| Housing Material | Aluminum, anodised |
| Optic Cover | Plastic, PC |
| Degree of Protection | IP65 IP67 |
| Connection | M12 × 1; 5-pin |
| Weight | 1,890 g |
Safety-relevant Data
| ESPE Type (EN 61496) | 4 |
| Performance Level (EN ISO 13849-1) | Cat. 4 PL e |
| PFHD | ≤ 1.8 × 10-8 |
| Mission Time TM (EN ISO 13849-1) | 20 a |
| Safety Integrity Level (EN 61508) | SIL 3 |
| Safety Integrity Level (EN 62061) | SILCL 3 |
General Data
| Scope of delivery | 1 × safety light array |
Function
| Body Protection | yes |
Standards and certificates
       |
Connection Diagram
 |
Ctrl. Panel
|
03 = Error Indicator
68 = Power LED 8a = coding 95 = Diagnosis/Large Detection Range |
