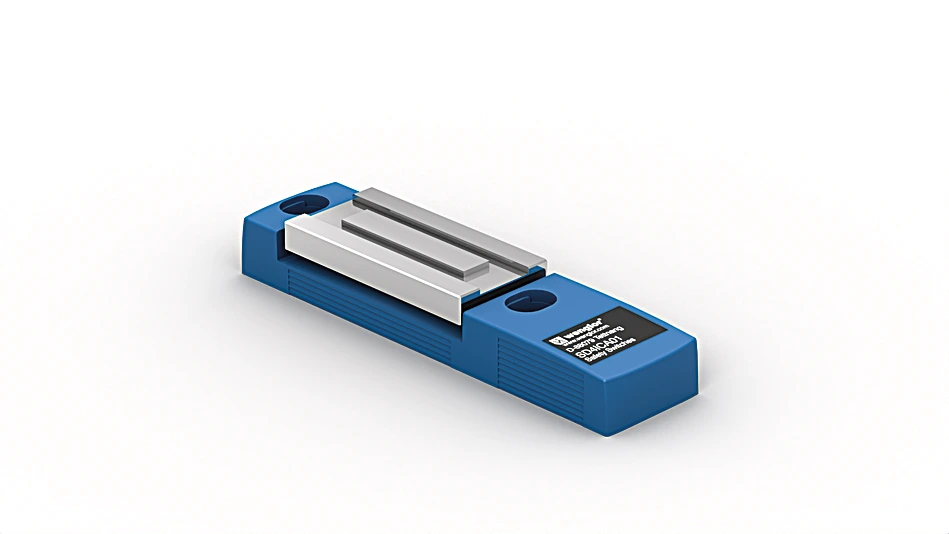

SD4ICA01 Guard Locking Device Actuator
Guard Locking Device
Applications: Safety Systems, Sensors & I/O
Description
This innovative guard locking device is suitable for process safety thanks to the constantly monitored locking force. Also, the safety level cat. 4 PL e (EN ISO 13849-1) can be achieved with just one guard locking device and is retained even during series connection. Response and risk times remain unchanged during series connection. Extensive diagnosis functions boost system availability and make installation and maintenance easier. Thanks to the electrical locking, no touching components whatsoever are used and therefore wear, the guard door clattering (and rattling) loudly and laborious cleaning work are avoided.
Features at a Glance
- 500 N locking force (monitored)
- Easy to clean
Technical Data
Electrical Data
| Sensor Type | Actuator |
| Temperature Range | -25 … 55 °C |
| Storage temperature | -25 … 85 °C |
Mechanical Data
| Housing Material | Plastic |
| Degree of Protection | IP67 |
| Weight | 467 g |
Safety-relevant Data
| Operating principle | Inductively coded |
General Data
| Applicable lock | SD4ICS01SE89 SD4ICS02SE89 SD4ICS03SE89 SD4ICS04SE89 SD4ICS13SE89 SD4ICS14SE89 |
