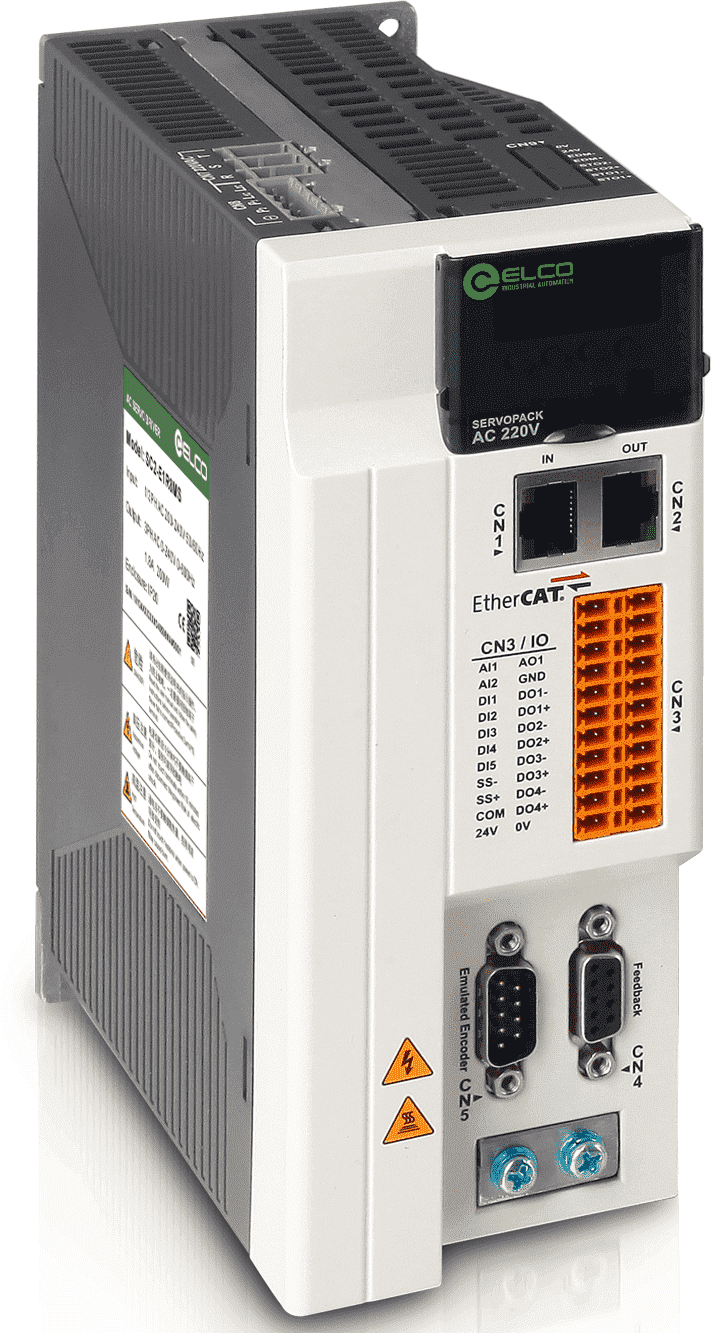

SC1-E120HS Servo driver
Servo driver, SC Series, SC1-E120HS, Rated current 1.8 A, 17-bit precision, EtherCAT communication, Enhanced capacity type, 3 DI + 4 DO + 2 AI + 1 AO
In Stock
$715.46
per unit
Applications: Motion Control
Technical Data
| High-speed digital input | 2 HDI |
| Normal digital input | 3 DI |
| Rated output current | 12.0 Arms |
| Capacity class | Capacity enhanced |
| Overload factor | _280 % |
| Resolution | 17 bit precision |
| Configure the motor power | 1.8 KW, 2.0 KW |
| Communication protocol | EtherCAT |
| Braking resistor | Internal, external |
| Customized parameters | Standard |
| Analog inputs | 2 AI |
| Normal digital output | 4 DO |
| Analog output | 1 AO |
| Voltage level | Single-phase 220 V AC |
