Description

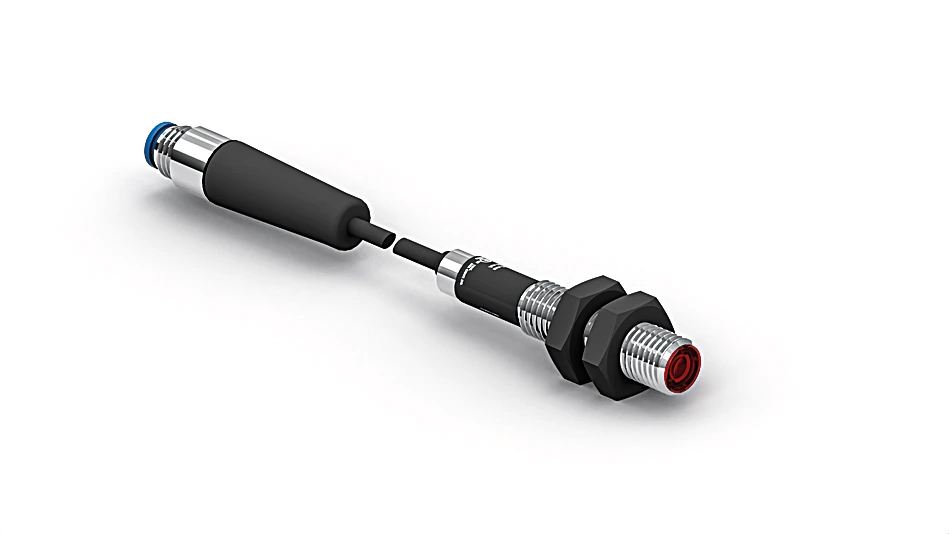

These through-beam sensors are best suited for use in industrial environments. Thanks to their large working range, the devices demonstrate excellent functional reliability in highly contaminated environments. The sensors can be checked for correct functioning via the test input.
Features at a Glance
- Ample performance reserves
- Infrared light
- Test input
- Insensitive to contamination
Technical Data
Optical Data
| Range | 1,500 mm |
| Light Source | Infrared Light |
| Service Life (T = +25 °C) | 100,000 h |
| Risk Group (EN 62471) | 1 |
| Opening Angle | 20 ° |
Electrical Data
| Sensor Type | Emitter |
| Supply Voltage | 10 … 30 V DC |
| Current Consumption (Ub = 24 V) | < 25 mA |
| Temperature Drift | < 10 % |
| Temperature Range | -10 … 60 °C |
| Reverse Polarity Protection | yes |
| Protection Class | III |
Mechanical Data
| Housing Material | Stainless steel, V2A (1.4305 / 303) |
| Full Encapsulation | yes |
| Degree of Protection | IP67 |
| Connection | M8 × 1; 4-pin |
| Cable length (L) | 200 mm |
| Cable Jacket Material | PVC |
| Weight | 12 g |
General Data
| Scope of delivery | 1 × initial start-up instructions 1 × MUTTER-M8-E002 hex nut 1 × sensor |
Standards and certificates
     |
Connection Diagram
 |
