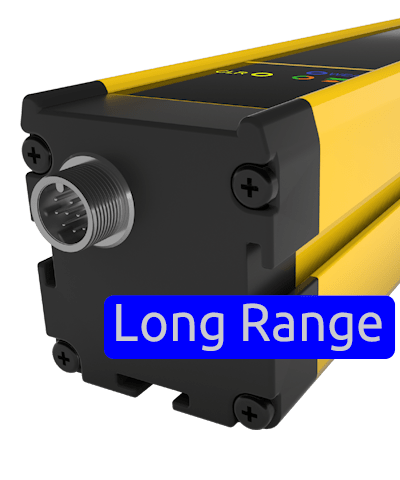

SAFEGATE SO 4B LR-A
Automatic restart + EDM (No Muting), Long Range, With status lamp
In Stock
$1,357.15
per unit
Applications: Safety Systems
Description
Safety Light Curtain: Type 4, SIL 3, SILCL 3, PL e, Cat. 4
Cross Section: 50 x 55 mm
Hardware configuration: no programming necessary, easy to install and replace
Connection and configuration through M12 connectors
Unshielded cables up to 100 m can be used to connect the Safety Light Curtain
What’s in the Box: Emitter, Receiver and Standard Fastening Brackets
Technical Data
Features
| Safety level | Type 4 – PL e |
| Protected height (mm) | 910 |
| Resolution (mm) | Multi-beams |
| Controlled height (mm) | 956 |
| Max. range (m) | 80 |
| Restart | Built-in – Automatic |
| Functioning system | Emitter / Receiver |
| Safety level (SIL / PL) | Type 4 – SIL 3 – SILCL 3 – PL e – Cat. 4 |
| Operating temperature (°C) | – 30 … 55 |
| Response time (ms) | 5,5 |
| Number of beams | 4 |
| Max. length of the connection cables (m) | 100 |
| Built-in Muting lamp | Yes – Status signalling only |
| Signalling | LEDs for light curtain’s status and diagnostics |
| Safety output type | 2 fail-safe PNP (400 mA at 24 VDC) with protection against short circuit, overload and reverse polarity |
| Connections | M12 5-pole male connector (emitter), M12 5-pole male connector (receiver) |
| MTTFD (ISO13849) years | 253,3 |
| PFHD (IEC 61508) | 1,03E-08 |
| Safety outputs | 2 fail-safe PNP (400 mA at 24 VDC) |
| Safety functions | Integrated |
| Detection | Access control |
| Operating Range (m) | Selectable: 6 … 40 m – low range / 8 … 80 m – high range |
| Protective enclosures | None |
| Packaging dimensions HxLxW (mm) | 145 x 1150 x 200 |
| Product class | C |
| Custom tariff | 85365019 |
Electrical data
| Power supply (VDC) | 24 ± 20% |
Mechanical data
| Overall height (mm) | 1076 |
| Cross section dimensions (mm) | 50 x 55 |
| Degree of protection | IP65 – IP67 |
| Fastening | Back slot, side slot with set of LL type brackets (included). SFB SG swivel brackets (optional) |
