SAFEGATE SMO 2B TRX
Muting, Auto-manual restart + EDM, With muting lamp, TRX
In Stock
$1,090.33
per unit
Applications: Safety Systems
Description
Safety Light Curtain: Type 4, SIL 3, SILCL 3, PL e, Cat. 4
Cross Section: 50 x 55 mm
Hardware configuration: no programming necessary, easy to install and replace
Connection and configuration through M12 connectors

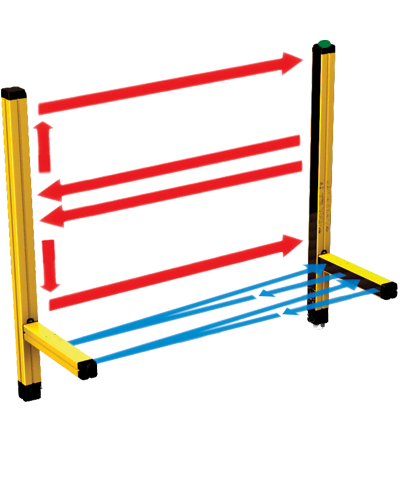

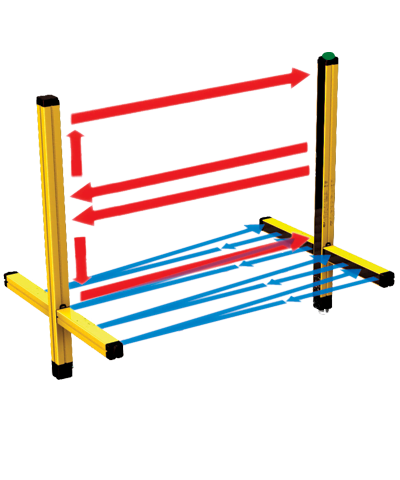

3 Pre-Configured Muting Logics: Exit-Only (Parallel or Crossed Beams), Entry-Exit (Parallel Beams), Entry-Exit (Crossed Beams)
Unshielded cables up to 100 m can be used to connect the Safety Light Curtain

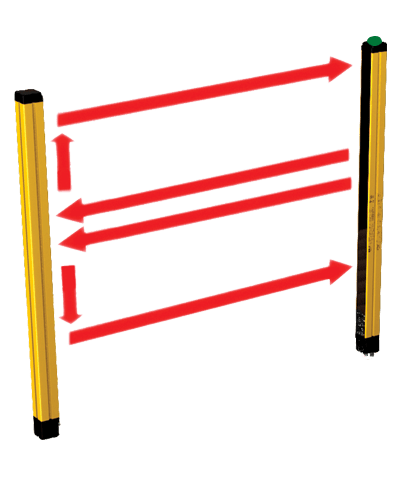

What’s in the Box: Active TX/RX Element, Passive Retro-Reflector Element and Standard Fastening Brackets
Technical Data
Features
| Safety level | Type 4 – PL e |
| Protected height (mm) | 510 |
| Resolution (mm) | Multi-beams |
| Controlled height (mm) | 578,5 |
| Max. range (m) | 8 |
| Restart | Built-in – User selectable automatic or manual |
| Functioning system | TRX (Transceiver) |
| Safety level (SIL / PL) | Type 4 – SIL 3 – SILCL 3 – PL e – Cat. 4 |
| Operating temperature (°C) | – 30 … 55 |
| Response time (ms) | 5,5 |
| Number of beams | 2 |
| Max. length of the connection cables (m) | 100 |
| Muting Function | Integrated |
| Muting logic | T (Two way) logic with 2 or 4 sensors crossed or parallel beams. L (One way) logic with 2 sensors crossed or parallel beams |
| Max. override time-out | 15 min. |
| Max. Muting time-out | 30 sec. or 9 hours selectable – Infinite (models with 4 sensors sequential Muting logic only) |
| Built-in Muting lamp | Yes |
| Muting sensors | Muting arms TRX kit, Muting brackets with MTRX sensors kit |
| Signalling | LEDs indication for diagnostics, light curtain’s status and Muting sensors status |
| Safety output type | 2 fail-safe PNP (400 mA at 24 VDC) with protection against short circuit, overload and reverse polarity |
| Connections | M12 12-pole male connector (active element), M12 5-pole female connectors (Muting sensors) M12 5-pole female connector (external Muting lamp) |
| MTTFD (ISO13849) years | 409 |
| PFHD (IEC 61508) | 7,42E-09 |
| Safety outputs | 2 fail-safe PNP (400 mA at 24 VDC) |
| Safety functions | Integrated |
| Detection | Access control |
| Operating Range (m) | Up to 8 |
| Protective enclosures | None |
| Packaging dimensions HxLxW (mm) | 145 x 760 x 200 |
| Product class | A |
| Custom tariff | 85365019 |
Electrical data
| Power supply (VDC) | 24 ± 20% |
Mechanical data
| Overall height (mm) | 699 |
| Cross section dimensions (mm) | 50 x 55 |
| Degree of protection | IP65 – IP67 |
| Fastening | Back slot, side slot with set of LL type brackets (included). SFB SG swivel brackets (optional) |
